T-slot aluminum profile E&I-8-8080K | High-strength structural frame | Industrial bracket | Mechanical equipment support

E&I-8-8080K T-slot aluminum profile, slot width 8mm, specification 80mm×80mm, with high strength and load-bearing capacity, widely used in industrial automation equipment brackets, mechanical equipment supports and frame structures, with corrosion resistance, easy processing and good stability.


Product Detail

Product Features

E&I-8-8080K T-slot aluminum profile, slot width 8mm, specification 80mm×80mm, suitable for industrial applications requiring high strength load bearing and structural stability. Made of high-quality aluminum alloy, after anodizing, the surface is smooth and has good corrosion resistance, suitable for long-term use in harsh environments.

The high load-bearing capacity and good fatigue resistance of this profile make it an ideal choice for automation equipment brackets, mechanical supports and industrial frames. The modular design provides great flexibility for installation and can be quickly assembled into various forms of industrial structures, greatly improving production efficiency and construction convenience.

E&I-8-8080K also has excellent impact resistance and bending resistance, and can remain stable and reliable even under high load or high-intensity conditions. It is widely used in automated assembly lines, industrial equipment brackets, guardrails and other industrial equipment support systems to meet the needs of different industries for high strength, stability and durability.

Detail

Model Physical Drawing Data Map Unit Mass Moment Of Inertia Sectional Resistance Moment

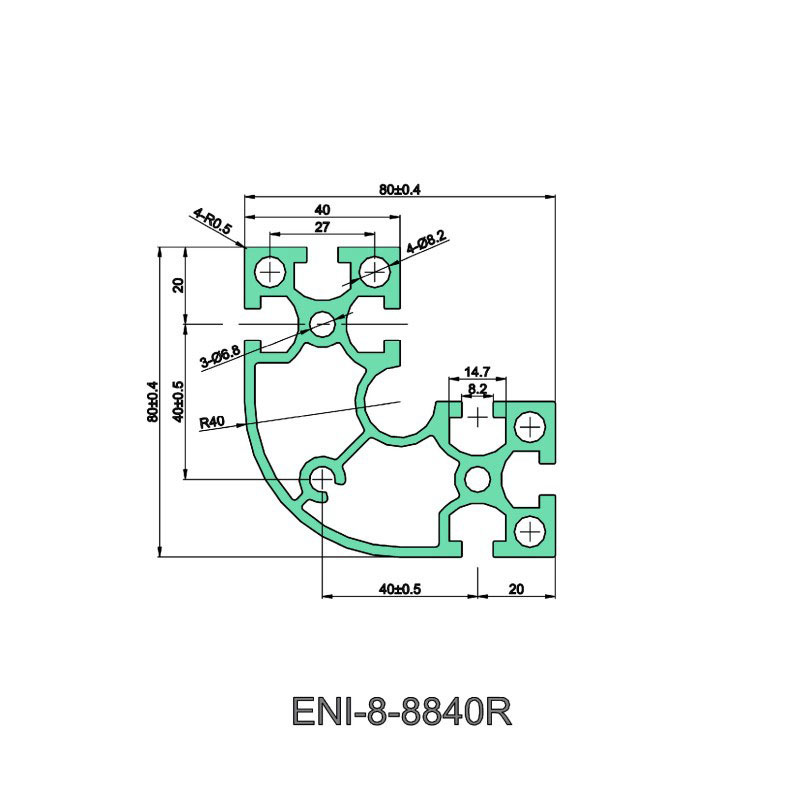

E&I-8-8840R  ENI-8-8840R 3.77kg/m Ix:84.76cm4 Iy:85.09cm4 Wx:21.19cm3 Wy:21.27cm3

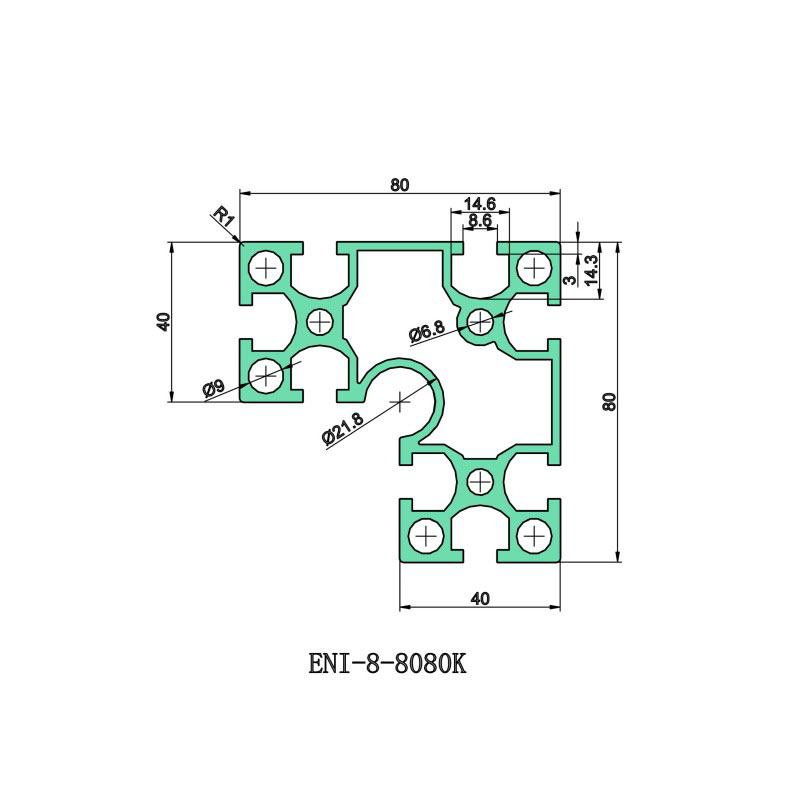

E&I-8-8080K  ENI-8-8080K 3.66kg/m Ix:88.04cm4 Iy:88.04cm4 Wx:22.01cm3 Wy:22.01cm3

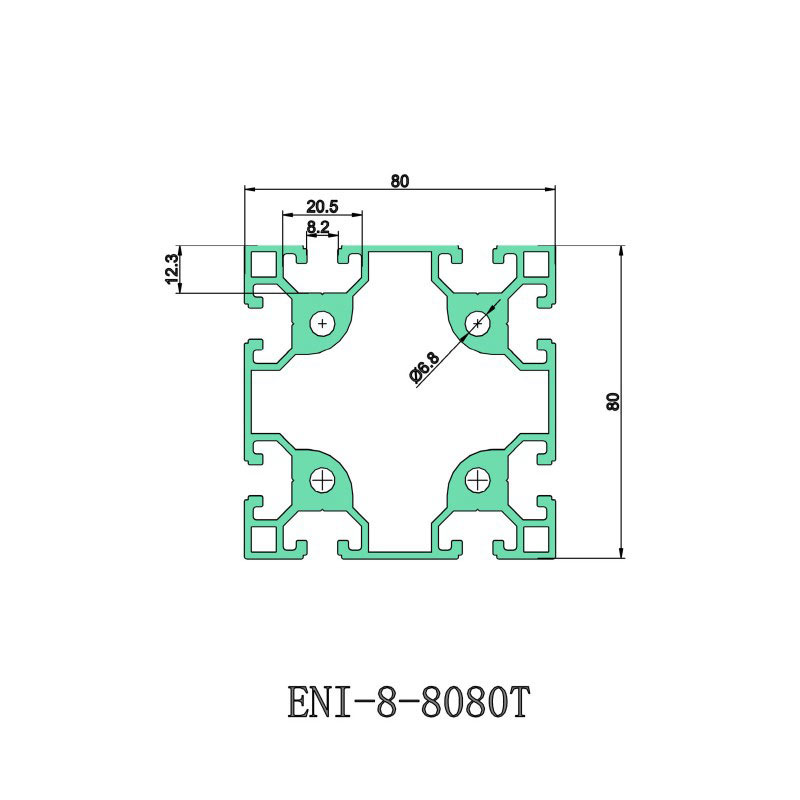

E&I-8-8080T  ENI-8-8080T  ENI-8-8080T 3.99kg/m Ix:104.32cm4 Iy:104.32cm4 Wx:26.08cm3 Wy:26.08cm3

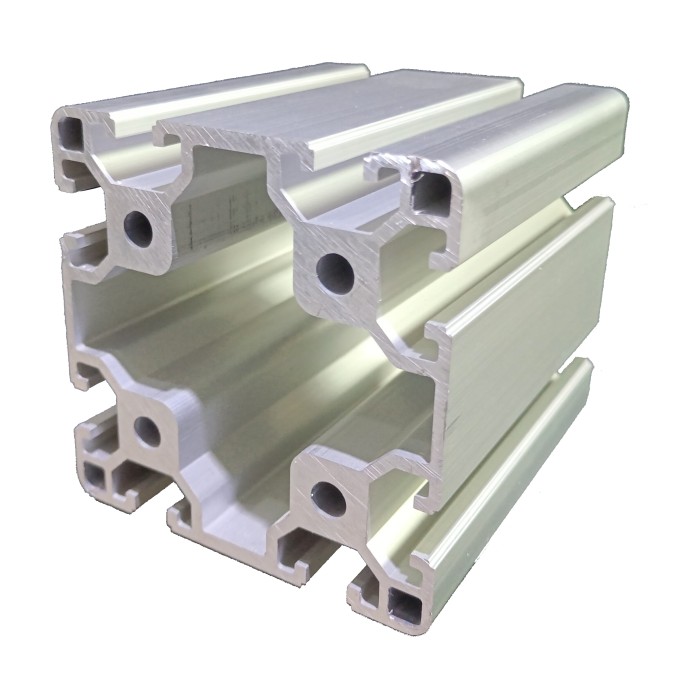

E&I-8-8080  ENI-8-8080  651 4.82kg/m Ix:122.77cm4 Iy:118.8cm4 Wx:30.69cm3 Wy:29.7cm3

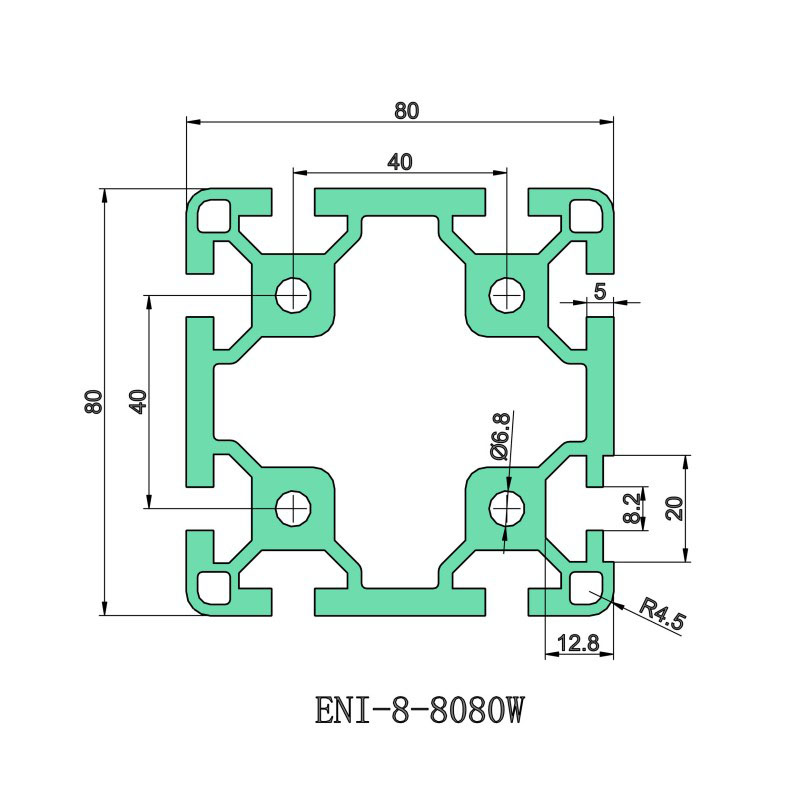

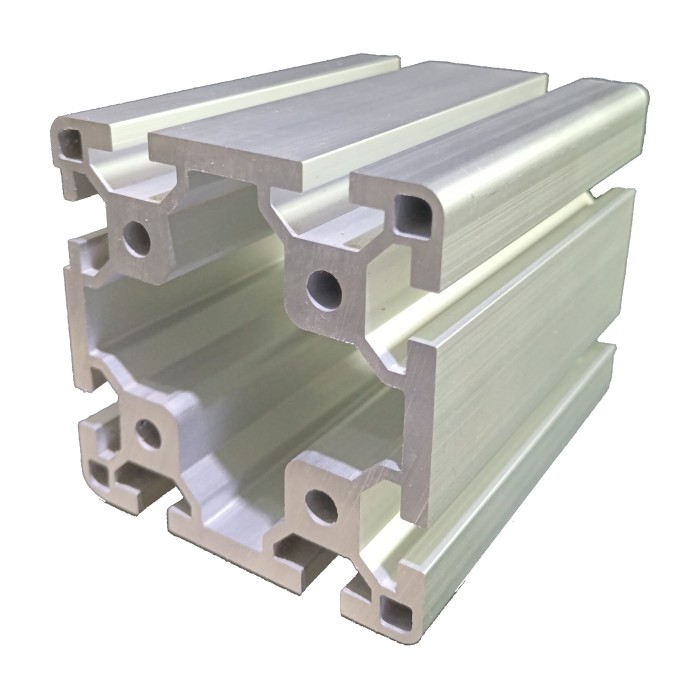

E&I-8-8080W  ENI-8-8080W  ENI-8-8080W 5.66kg/m Ix:147.13cm4 Iy:144.33cm4 Wx:36.78cm3 Wy:36.08cm3

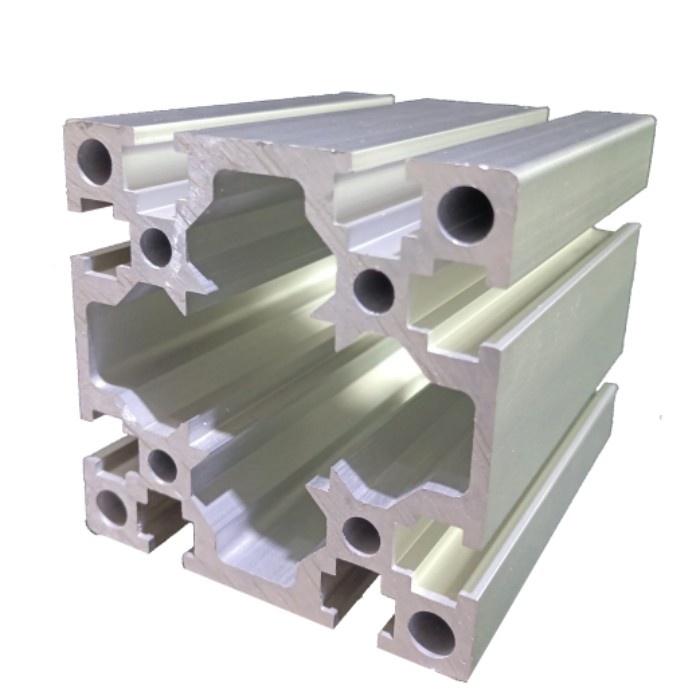

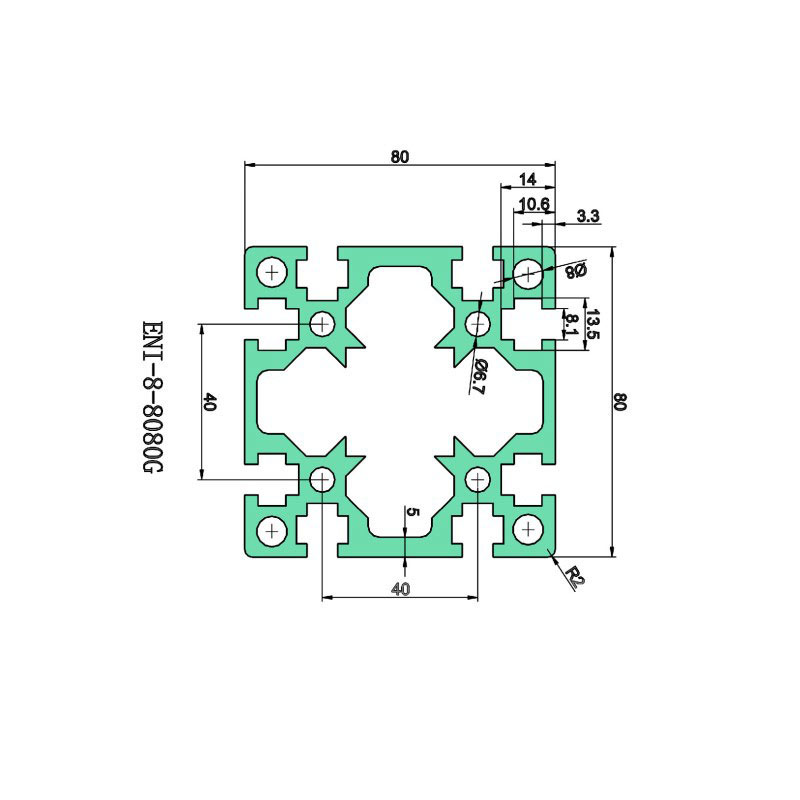

E&I-8-8080G  ENI-8-8080G  ENI-8-8080G 5.68kg/m Ix:146.63cm4 Iy:154.96cm4 Wx:36.66cm3 Wy:38.74cm3

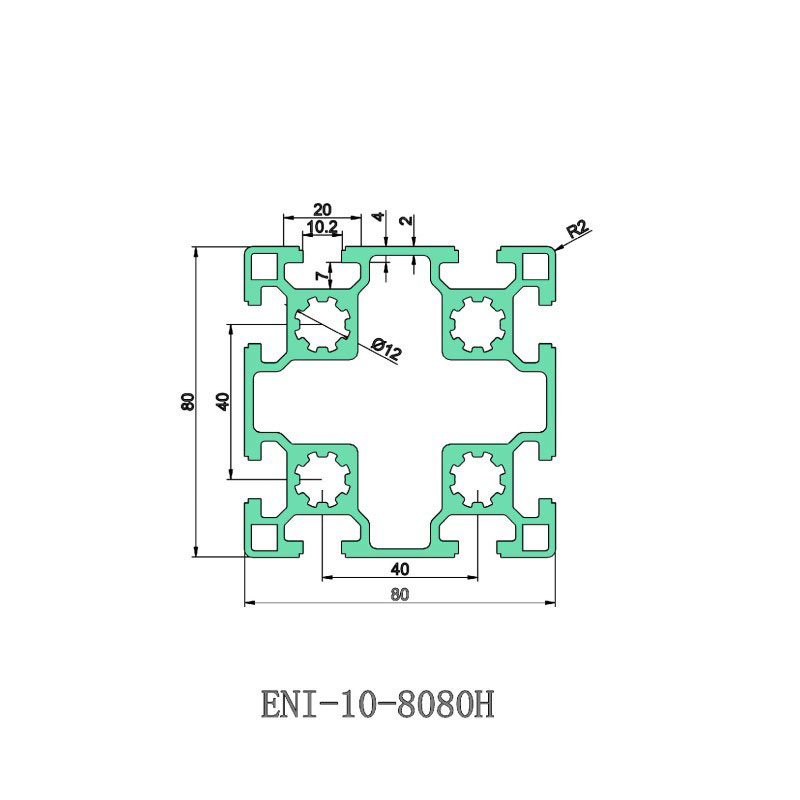

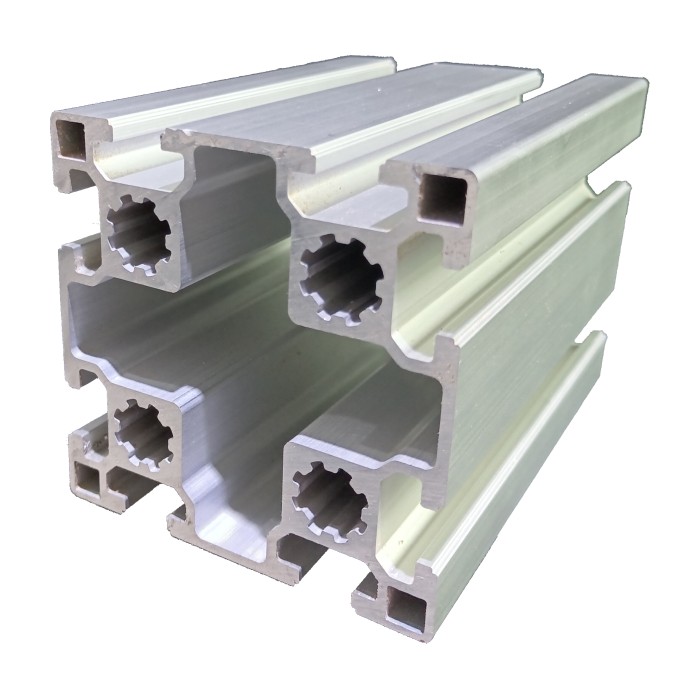

E&I-10-8080H  ENI-10-8080H  ENI-10-8080H 4.25kg/m Ix:109.92cm4 Iy:109.92cm4 Wx:27.48cm3 Wy:27.48cm3

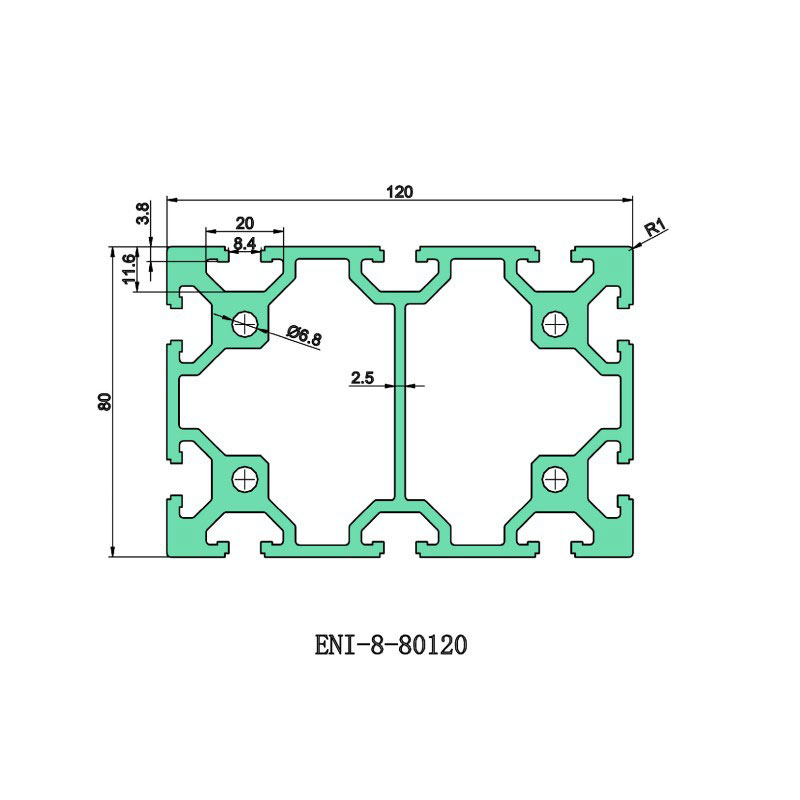

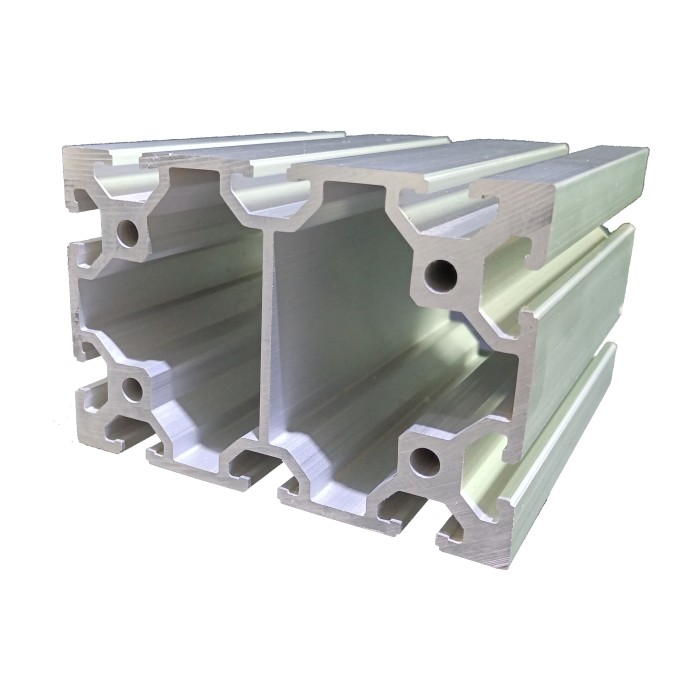

E&I-8-80120  ENI-8-80120  ENI-8-80120 6.89kg/m Ix:204.89cm4 Iy:443.57cm4 Wx:51.22cm3 Wy:73.93cm3

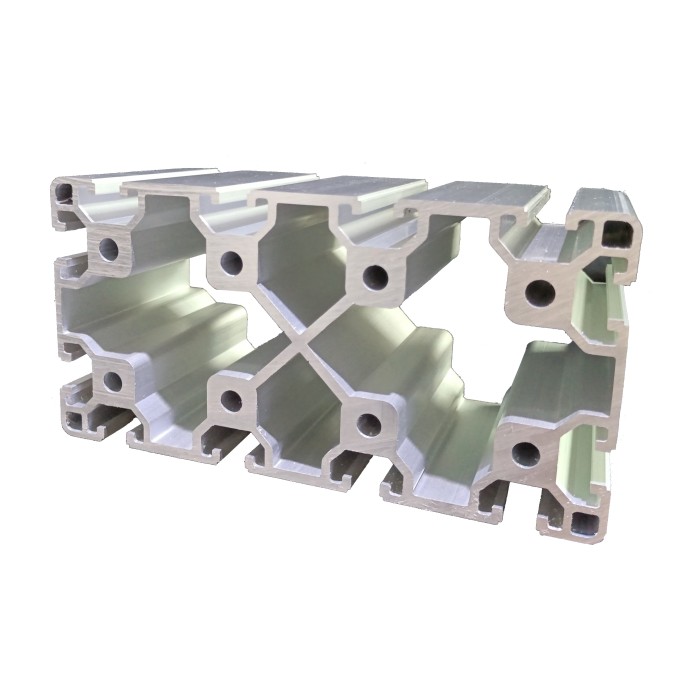

E&I-8-80160  ENI-8-80160  ENI-8-80160 9.09kg/m Ix:238.24cm4 Iy:809.89cm4 Wx:59.56cm3 Wy:101.24cm3

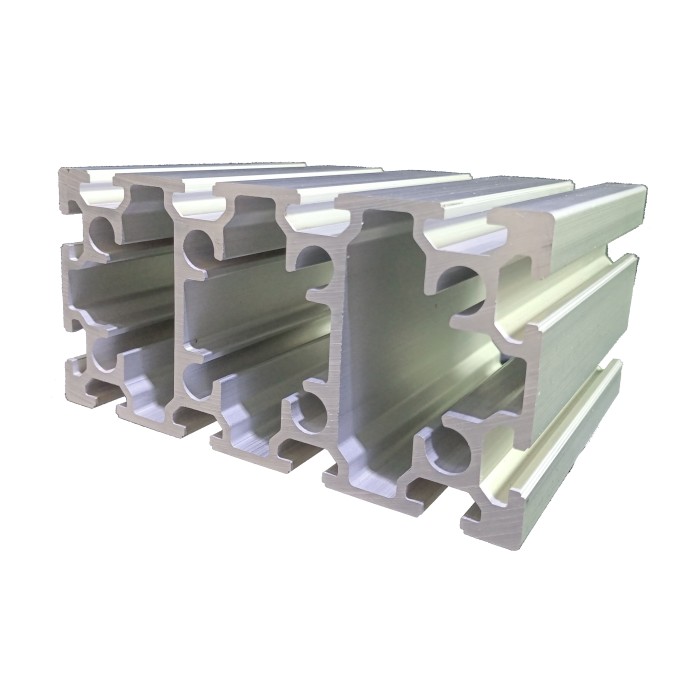

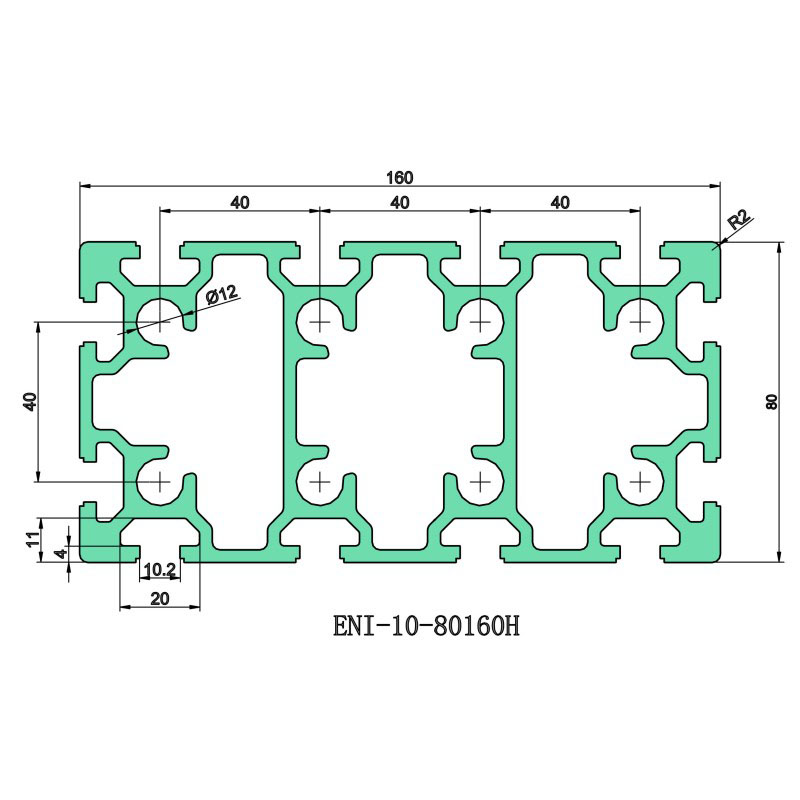

E&I-10-80160H  ENI-10-80160H ENI-10-80160H 9.03kg/m Ix:263.59cm4 Iy:918.18cm4 Wx:65.79cm3 Wy:114.77cm3
