| Model | Physical Drawing | Data Map | Unit Mass | Moment Of Inertia | Sectional Resistance Moment |

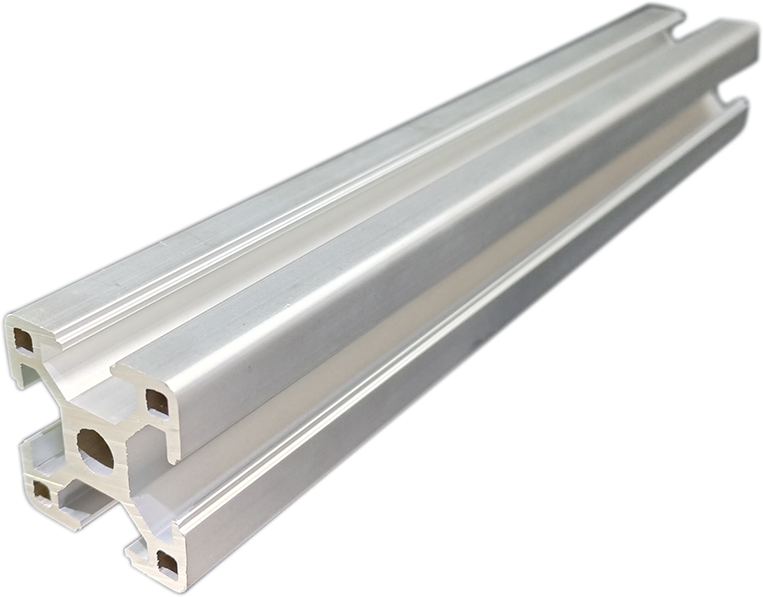

| E&I-8-3030 |  |
 |
0.88kg/m | Ix:2.8cm4 Iy:2.8cm4 | Wx:1.87cm3 Wy:1.87cm3 |
| E&I-8-3030F |  |
 |
0.9kg/m | Ix:2.9cm4 Iy:2.9cm4 | Wx:1.93cm3 Wy:1.93cm3 |
| E&I-8-3030A |  |
 |
0.78kg/m | Ix:2.47cm4 Iy:2.47cm4 | Wx:1.65cm3 Wy:1.65cm3 |
| E&I-8-3030ME |  |
 |
0.91kg/m | Ix:2.75cm4 Iy:3.11cm4 | Wx:1.83cm3 Wy:2.07cm3 |
| E&I-8-3030M |  |
 |
0.9kg/m | Ix:3.0cm4 Iy:3.0cm4 | Wx:2.00cm3 Wy:2.00cm3 |
| E&I-8-3030R |  |
 |
0.88kg/m | Ix:2.56cm4 Iy:2.56cm4 | Wx:1.71cm3 Wy:1.71cm3 |
