Industrial Aluminum Profiles ENI-8-3030A Anodized Mechanical Support Aluminum Industrial Design Aluminum Aluminum Assembly Systems

ENI-8-3030A industrial aluminum profile with anodized finish and reinforced mechanical support for industrial design and aluminum assembly systems ensures structural solidity and design flexibility.


Product Detail

Product Features

ENI-8-3030A Industrial Aluminum Profile is a superior product designed to meet the demands of high-strength and lightweight materials. This aluminum profile is anodized, which not only enhances its corrosion and abrasion resistance, but also gives it a long-lasting aesthetic appearance, making it a preferred material in the field of mechanical support and industrial design.

Thanks to its high strength properties, ENI-8-3030A is able to withstand significant loads while maintaining structural stability and safety, which is essential for mechanical support applications. The lightness of the material reduces the overall weight of the structure, making transportation and installation easier, while also reducing energy consumption and improving energy efficiency.

In the field of industrial design, the flexibility and customizability of ENI-8-3030A aluminum profile makes it ideal for innovative designs. It can be machined into a variety of shapes and sizes to suit different design requirements and functional needs, enabling personalized industrial solutions.

The convenience of the aluminum assembly system is another major advantage of the ENI-8-3030A. It comes with a range of standardized fittings and connectors, making the assembly process fast, efficient and without the need for special tools or techniques. This modular design approach not only improves construction efficiency, but also ensures structural accuracy and consistency.

Detail

Model Physical Drawing Data Map Unit Mass Moment Of Inertia Sectional Resistance Moment

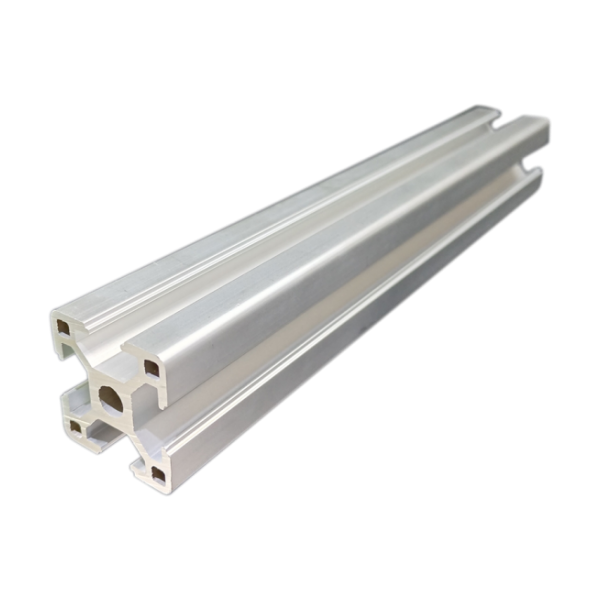

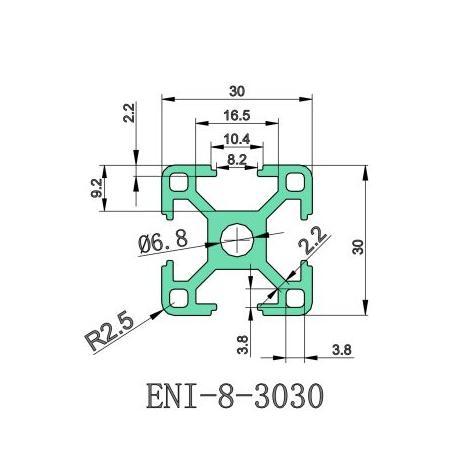

E&I-8-3030 ENI-8-3030 ENI-8-3030_00 0.88kg/m Ix:2.8cm4 Iy:2.8cm4 Wx:1.87cm3 Wy:1.87cm3

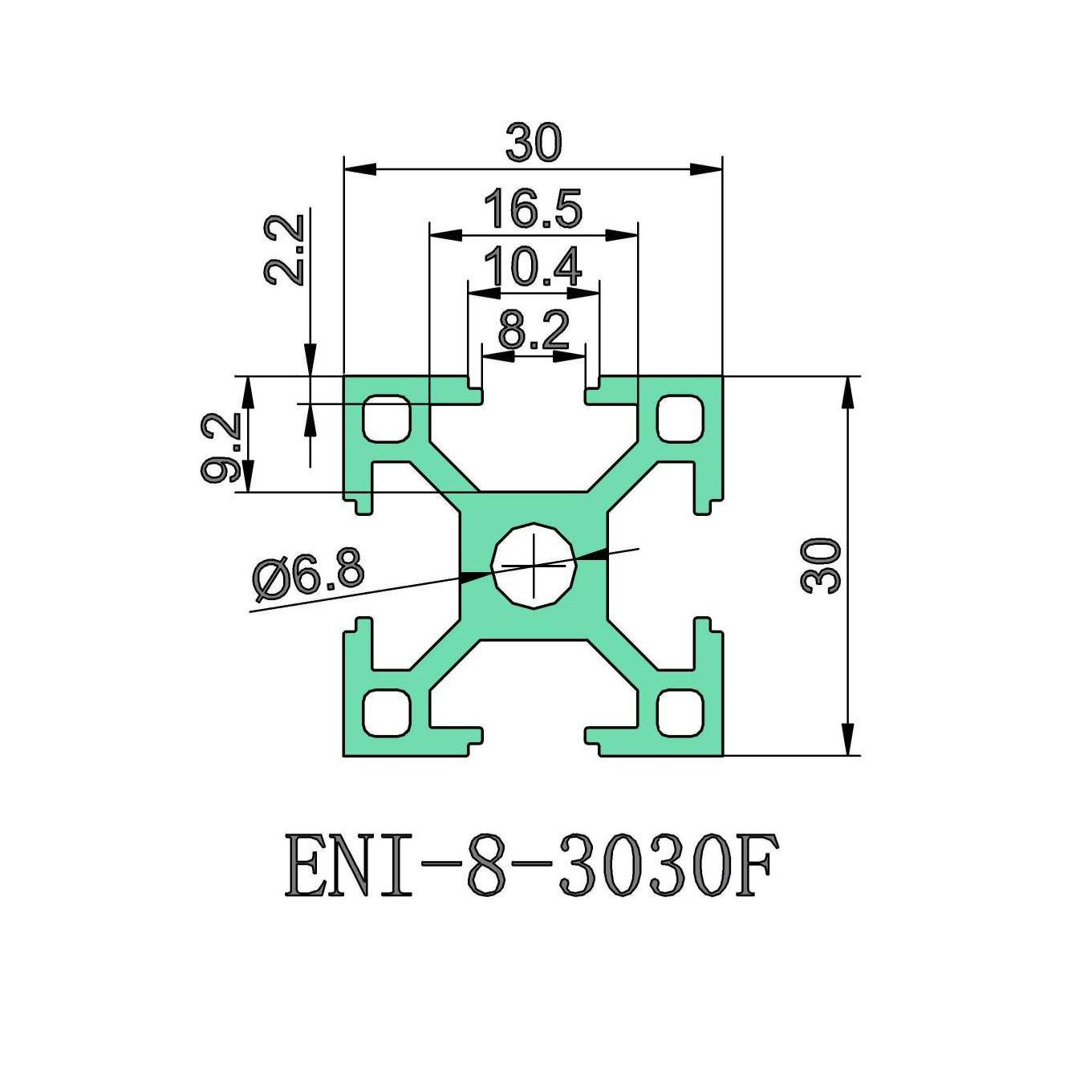

E&I-8-3030F ENI-8-3030F_00 0.9kg/m Ix:2.9cm4 Iy:2.9cm4 Wx:1.93cm3 Wy:1.93cm3

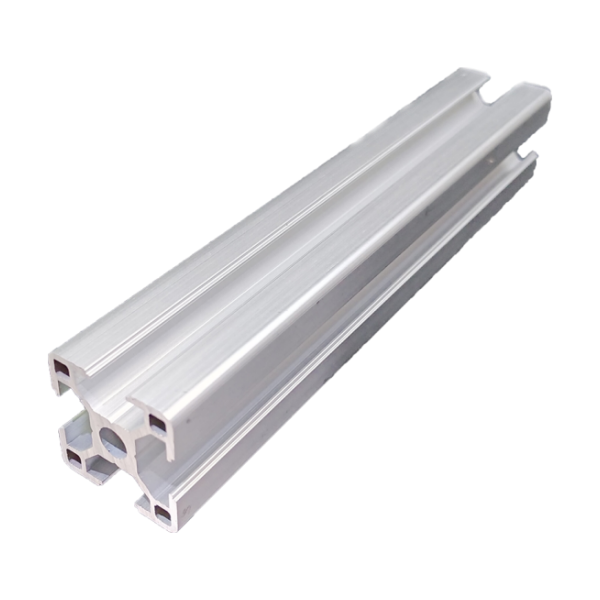

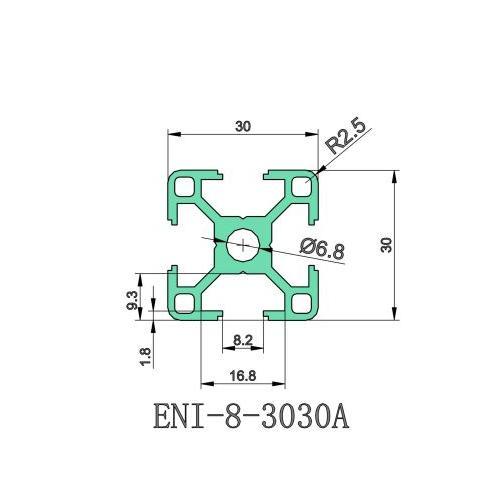

E&I-8-3030A ENI-8-3030A ENI-8-3030A_00 0.78kg/m Ix:2.47cm4 Iy:2.47cm4 Wx:1.65cm3 Wy:1.65cm3

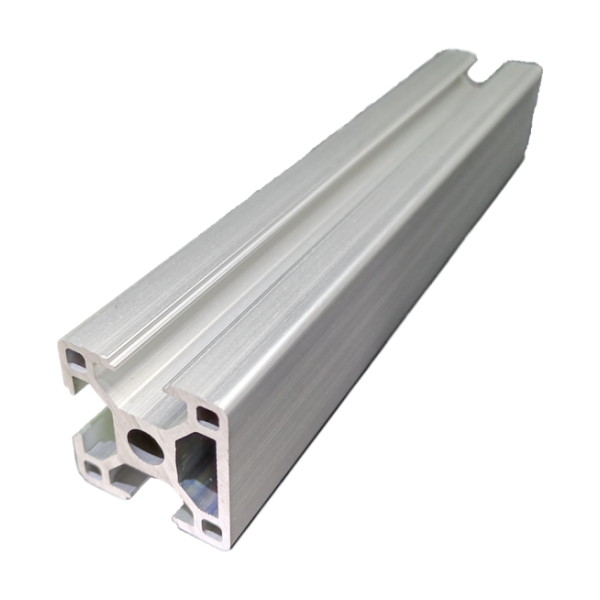

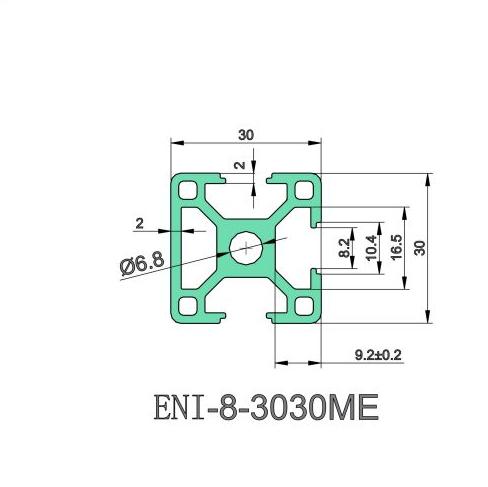

E&I-8-3030ME ENI-8-3030ME ENI-8-3030ME_00 0.91kg/m Ix:2.75cm4 Iy:3.11cm4 Wx:1.83cm3 Wy:2.07cm3

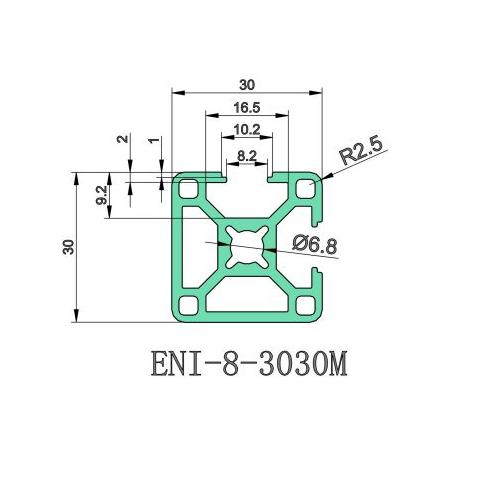

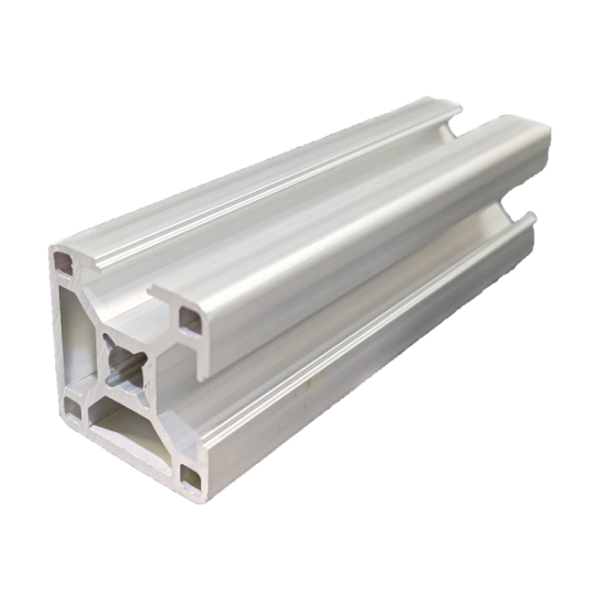

E&I-8-3030M ENI-8-3030M ENI-8-3030M_00 0.9kg/m Ix:3.0cm4 Iy:3.0cm4 Wx:2.00cm3 Wy:2.00cm3

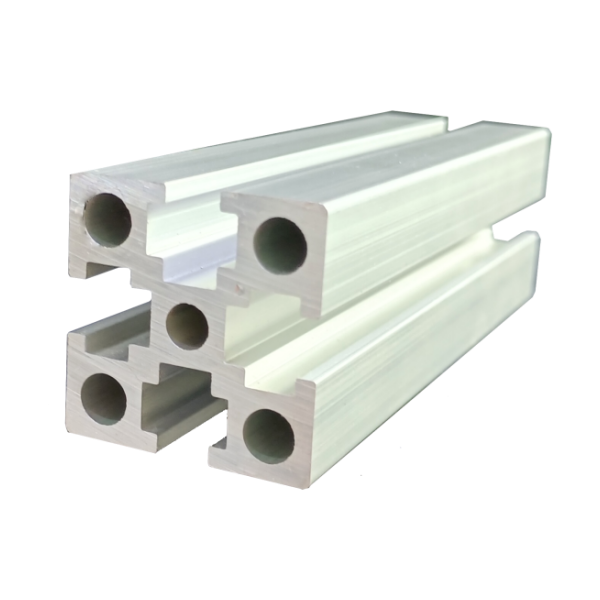

ENI-6-3030G  ENI-6-3030G

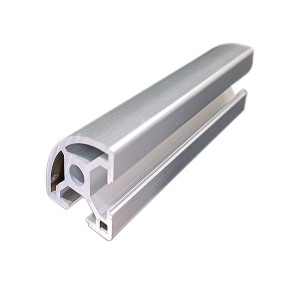

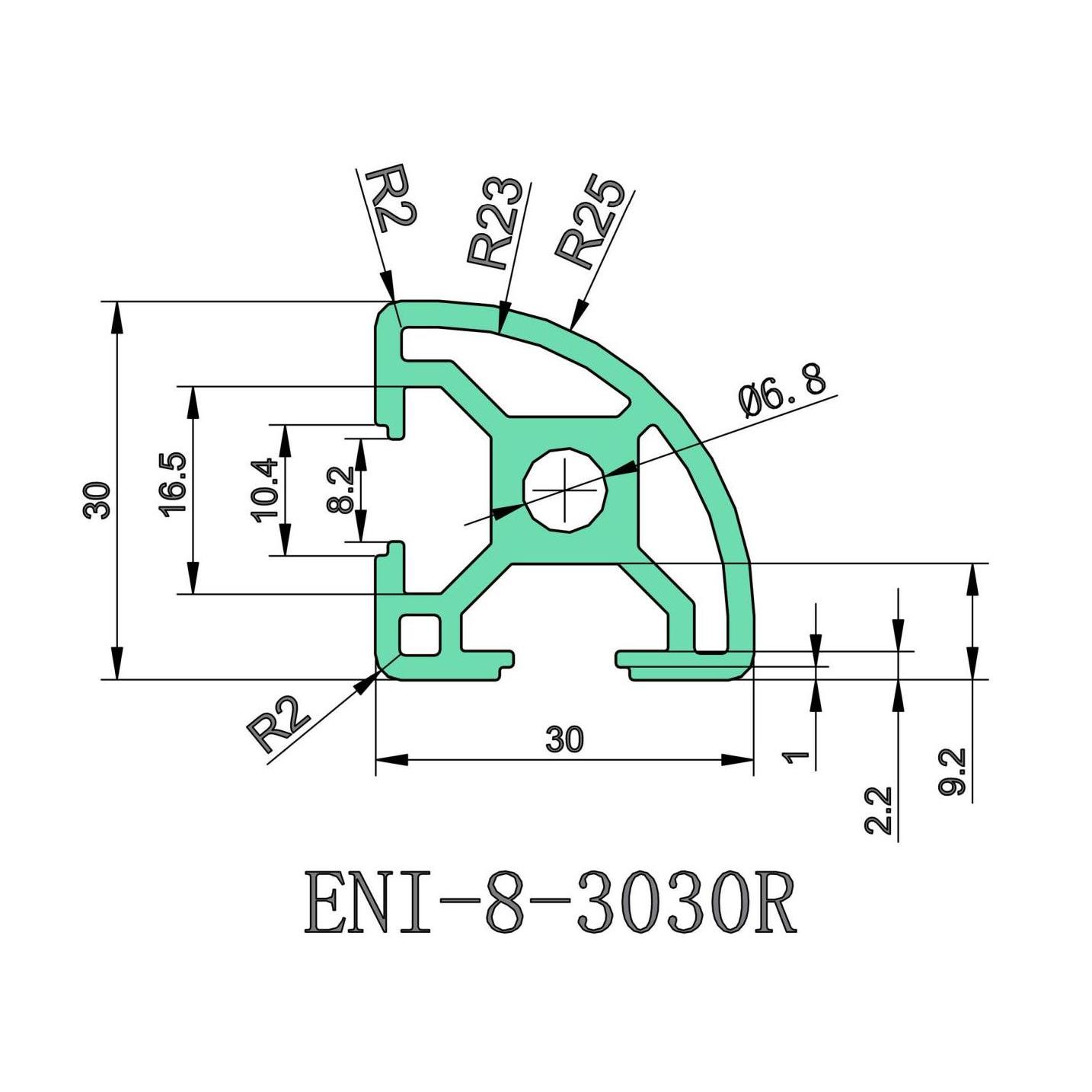

E&I-8-3030R ENI-8-3060 ENI-8-3060 0.88kg/m Ix:2.56cm4 Iy:2.56cm4 Wx:1.71cm3 Wy:1.71cm3

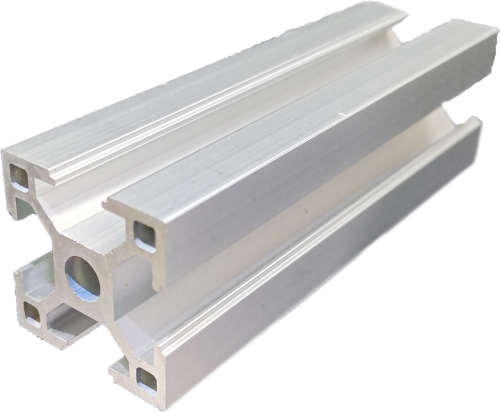

E&I-8-3040  sheet-2 1.42kg/m Ix:6.80cm4 Iy:7.99cm4 Wx:3.4cm3 Wy:5.33cm3

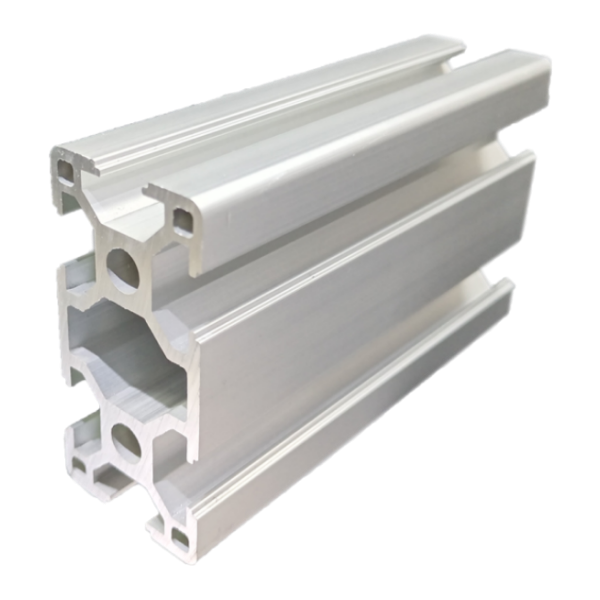

E&I-8-3060 ENI-8-3060 ENI-8-3060_00 1.61kg/m Ix:5.36cm4 Iy:20.28cm4 Wx:3.57cm3 Wy:6.76cm3

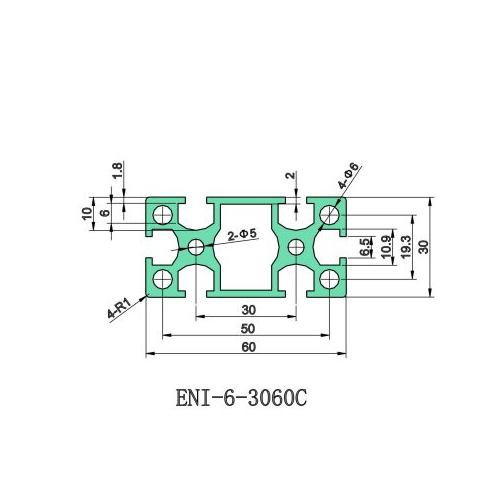

ENI-6-3060C ENI-6-3060C ENI-6-3060C_00

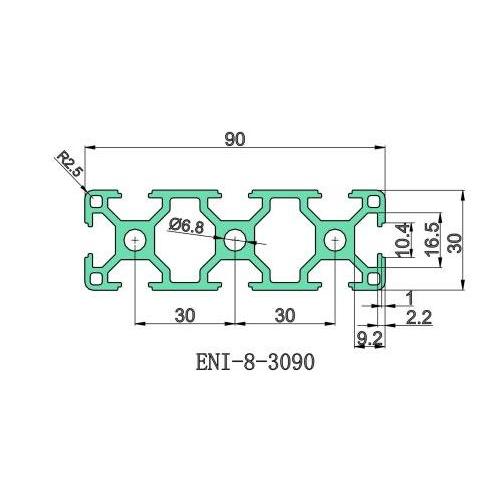

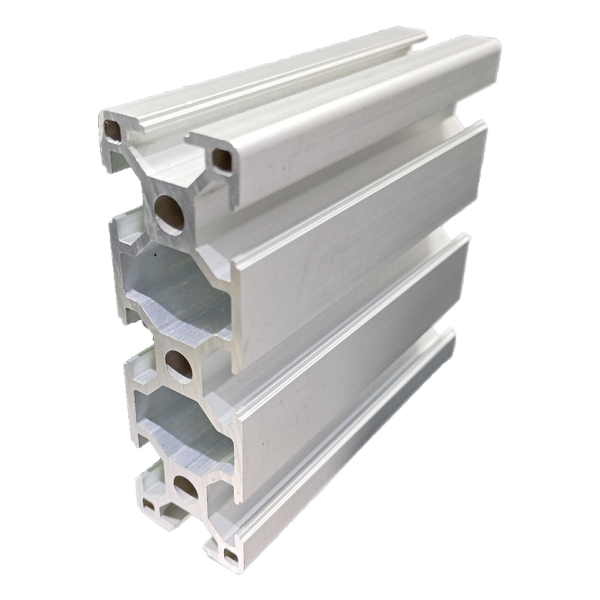

E&I-8-3090 ENI-8-3090 ENI-8-3090_00 2.39kg/m Ix:7.92cm4 Iy:64.62cm4 Wx:5.28cm3 Wy:14.36cm3

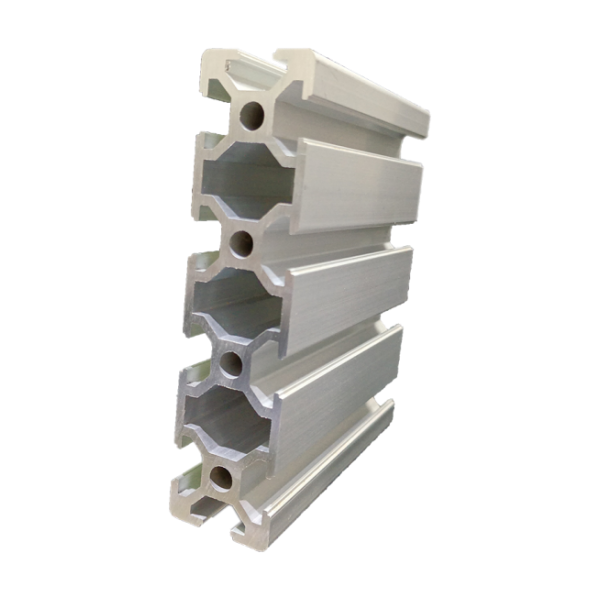

E&I-8-30120 ENI-8-30120 ENI-8-30120_00 3.40kg/m Ix:11.91cm4 Iy:172.57cm4 Wx:7.94cm3 Wy:28.76cm3

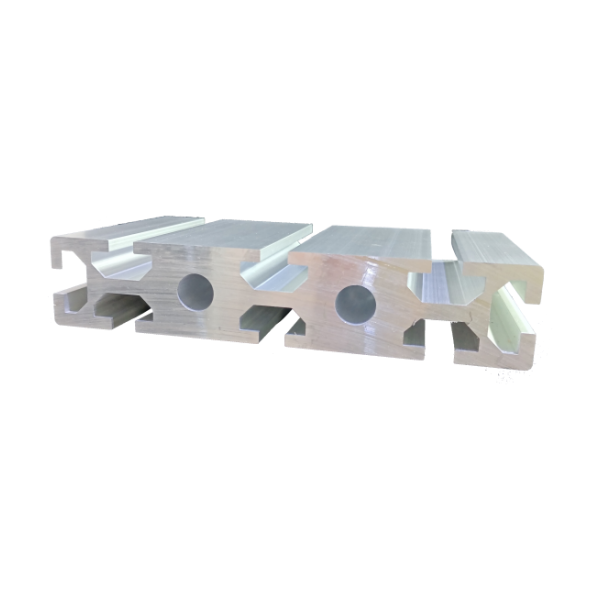

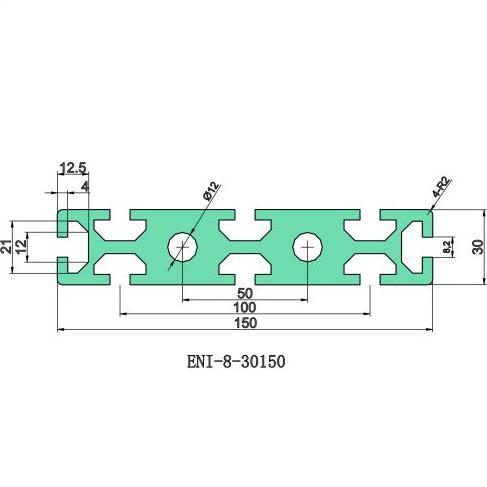

E&I-8-30150 ENI-8-30150 ENI-8-30150_00 7.40kg/m Ix:23.79cm4 Iy:455.75cm4 Wx:15.86cm3 Wy:60.77cm3

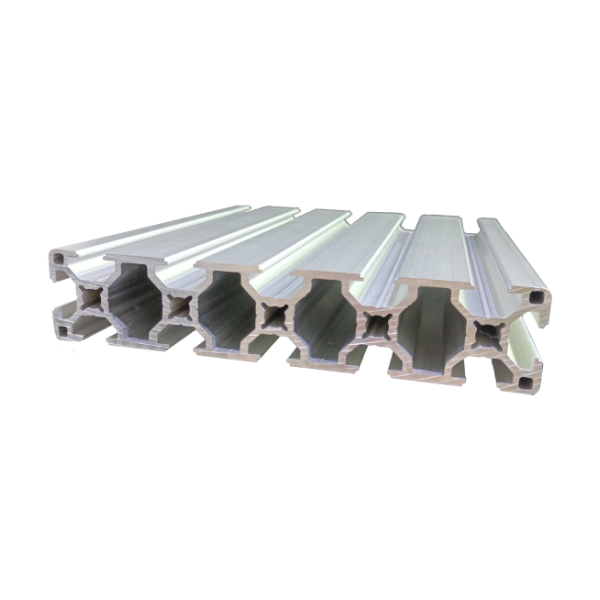

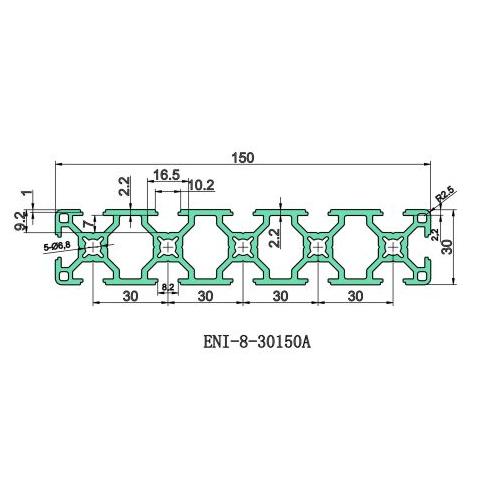

E&I-8-30150A ENI-8-30150A ENI-8-30150A_00 3.56kg/m Ix:12.92cm4 Iy:265.86cm4 Wx:8.61cm3 Wy:35.45cm3
