Industrial aluminum profile E&I-8-4040R anodized profile quarter-circle corrosion-resistant guardrail electromechanical equipment protective cover aluminum profile display cabinet

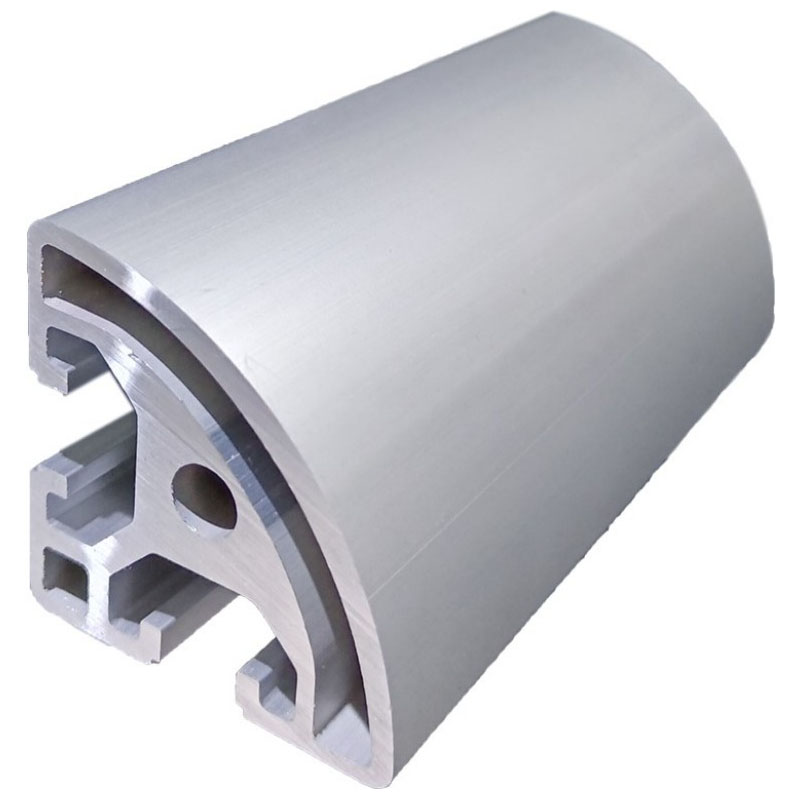

E&I-8-4040R industrial aluminum profile, quarter-circle design, specification 40mm*40mm, anodized, suitable for guardrails, electromechanical equipment protection covers and aluminum profile display cabinets.

Send email to us

Product Detail

Product Features

E&I-8-4040R industrial aluminum profile is an innovative aluminum alloy profile. Its unique quarter-circle shape design adds a modern feel to its appearance and function. Its specifications are 40mm*40mm, and it adopts anodized surface treatment to ensure its corrosion resistance in long-term use. This product is particularly suitable for scenes such as guardrails, electromechanical equipment protective covers, and aluminum profile display cabinets. It not only provides protection functions, but also improves the aesthetics.

The curved design of E&I-8-4040R not only adds a unique element to its appearance, but also improves the rigidity of the structure and enhances the protection of the equipment. The anodizing treatment makes the surface smooth and scratch-resistant, which is very suitable for use in display cabinets to show the high-end sense of the product. In addition, this aluminum profile has excellent corrosion resistance in industrial production and is suitable for use in humid or other harsh environments, providing a safe and reliable barrier for the protection of electromechanical equipment.

The modular structure of this model supports a variety of installation methods and scenarios, and users can flexibly assemble and expand it. Its lightweight design not only facilitates transportation and installation, but also reduces the weight burden of the overall frame. The E&I-8-4040R meets the modern industry's requirements for environmental protection and durability in terms of material selection. It is an ideal choice for occasions that require special design and stable structure, providing a solid and reliable support solution for industrial production and product display .

Detail

Model	Physical Drawing	Data Map	Unit Mass	Moment Of Inertia	Sectional Resistance Moment
E&I-6-4040			1.25kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3

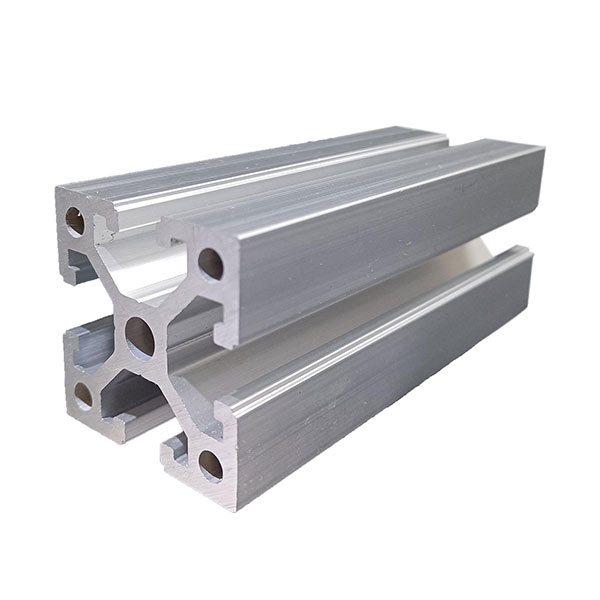

E&I-8-4040F			1.81kg/m	Ix:11.23cm4 Iy:11.23cm4	Wx:5.62cm3 Wy:5.62cm3
E&I-8-4040GG			1.32kg/m	Ix:7.73cm4 Iy:7.73cm4	Wx:3.87cm3 Wy:3.87cm3

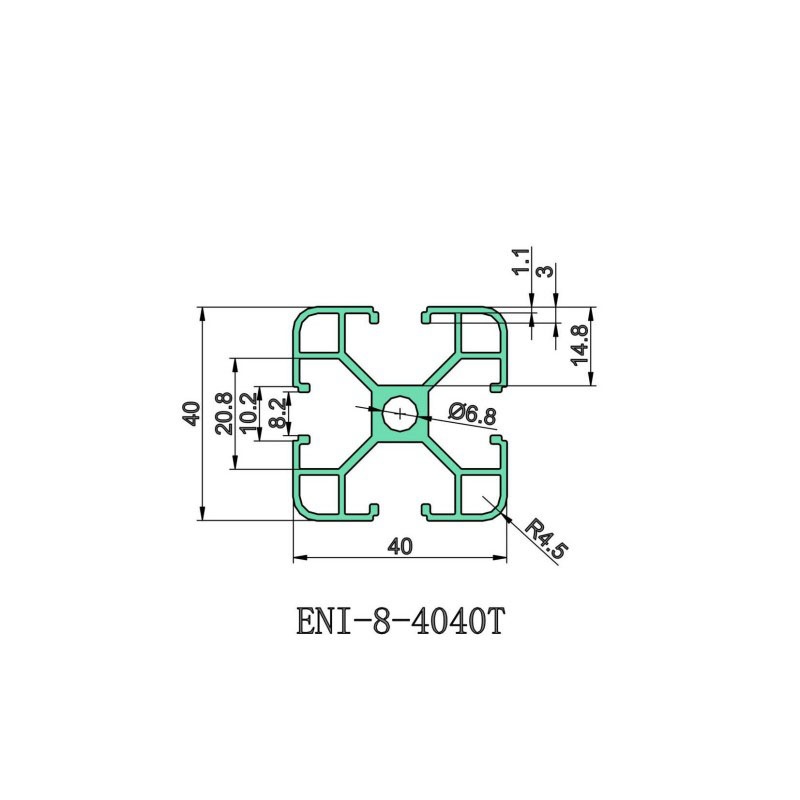

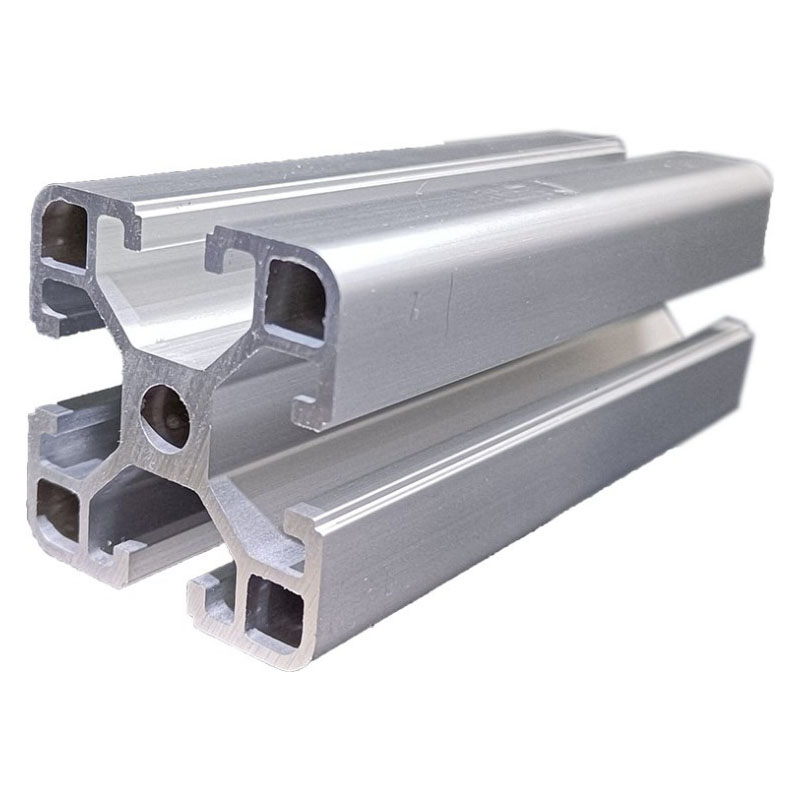

E&I-8-4040T			0.89kg/m	Ix:5.09cm4 Iy:5.09cm4	Wx:2.55cm3 Wy:2.55cm3

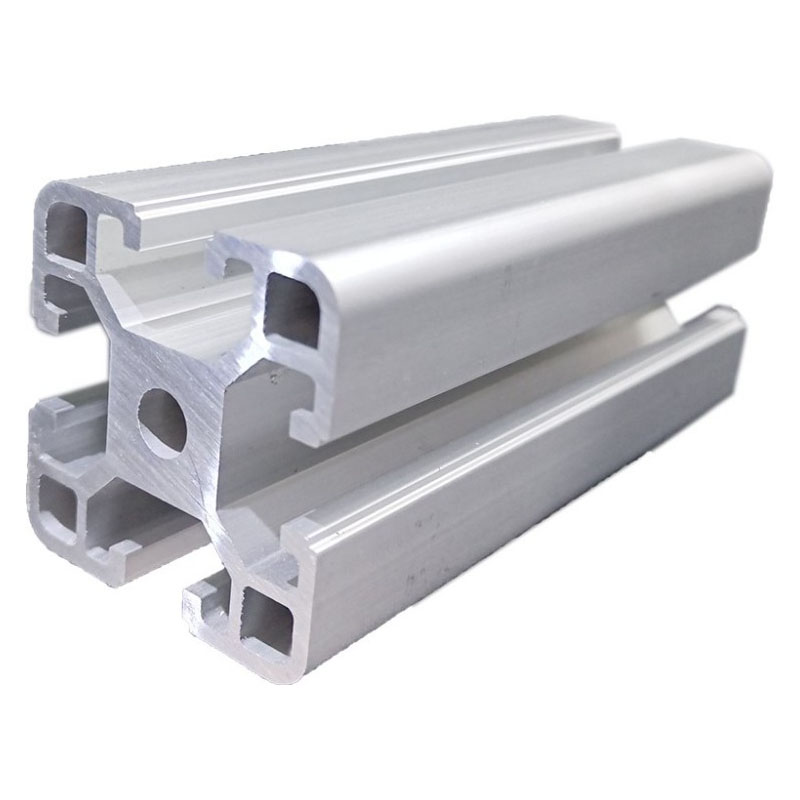

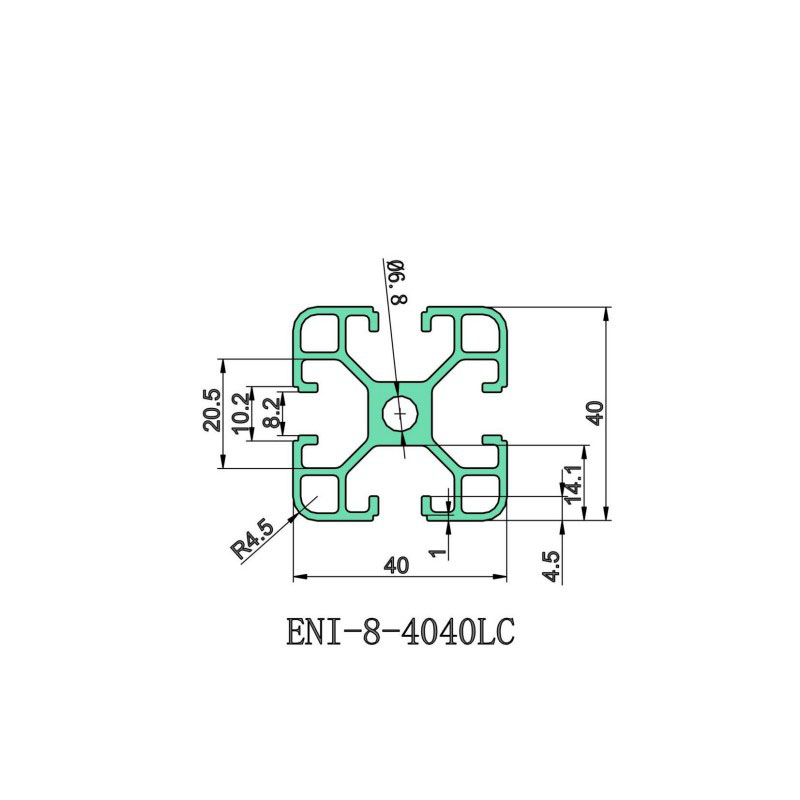

E&I-8-4040LC			1.13kg/m	Ix:6.37cm4 Iy:6.37cm4	Wx:3.18cm3 Wy:3.18cm3

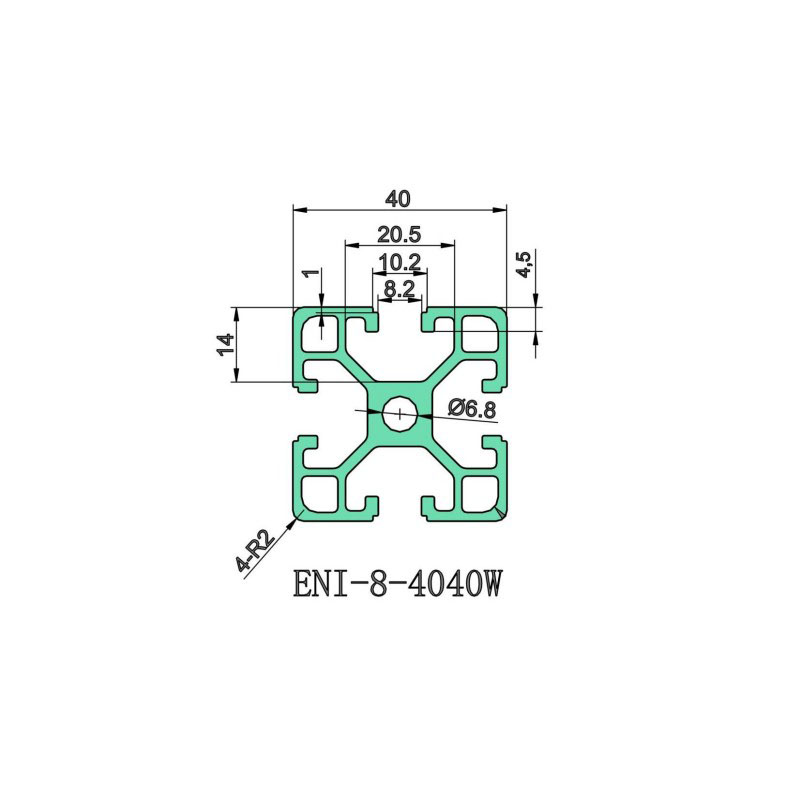

E&I-8-4040W			1.33kg/m	Ix:7.82cm4 Iy:7.82cm4	Wx:3.91cm3 Wy:3.91cm3

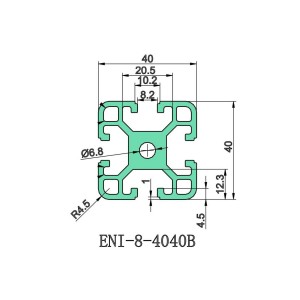

E&I-8-4040B			1.64kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3

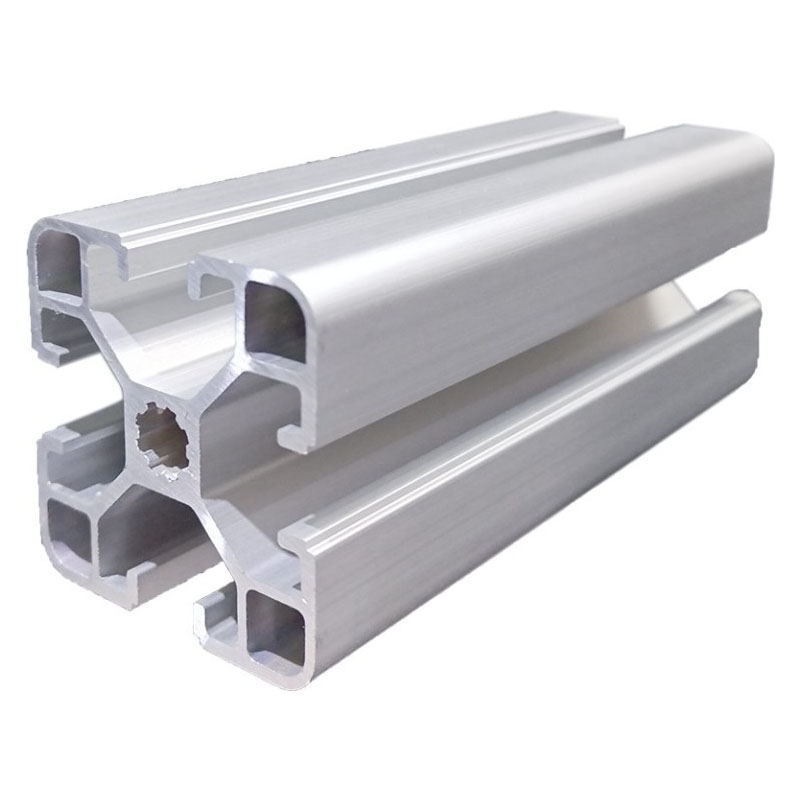

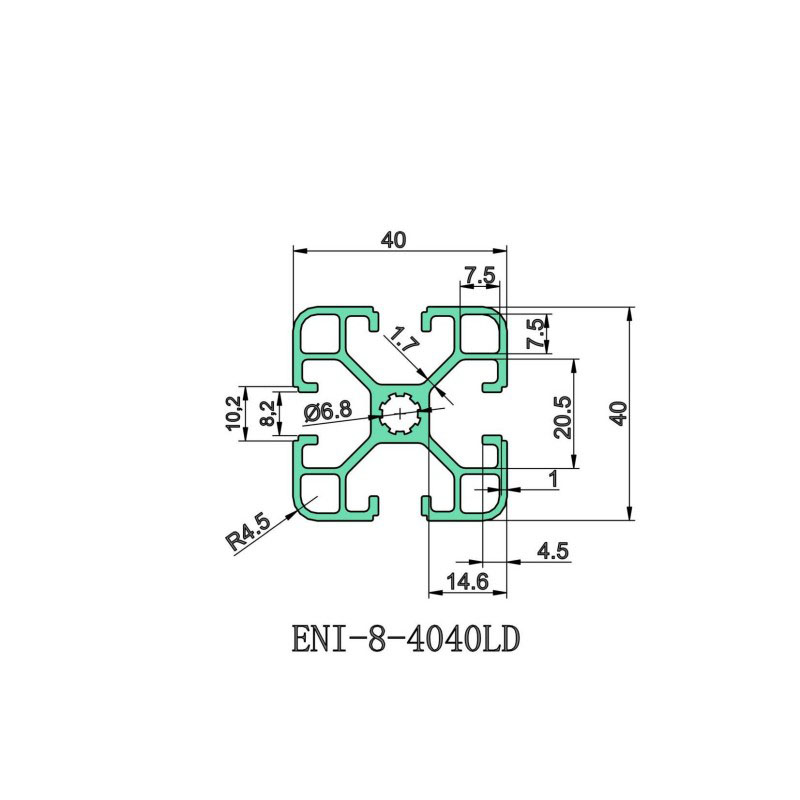

E&I-8-4040LD			1.05kg/m	Ix:6.21cm4 Iy:6.21cm4	Wx:3.11cm3 Wy:3.11cm3

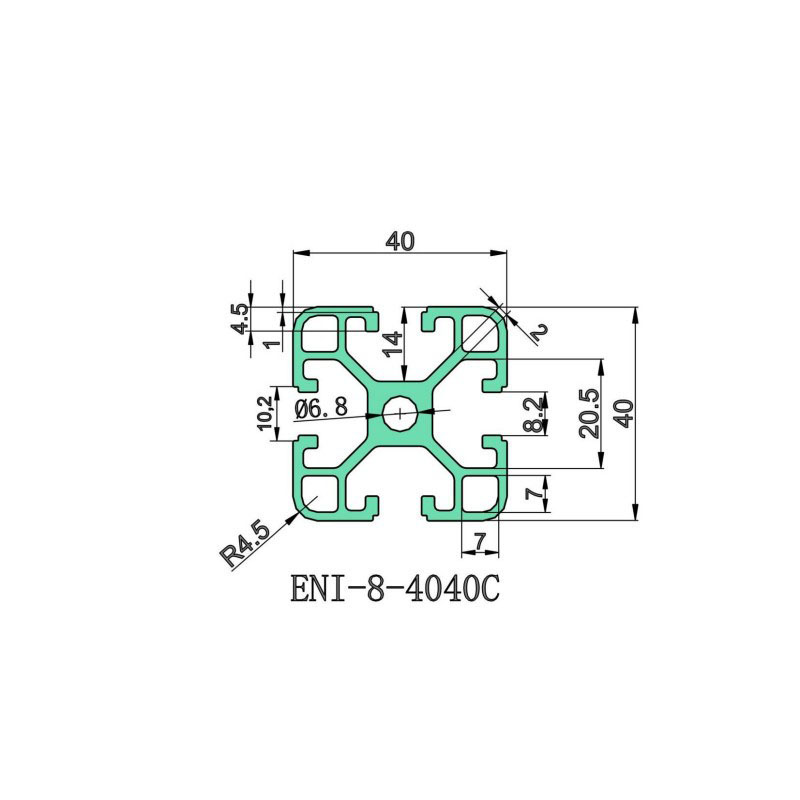

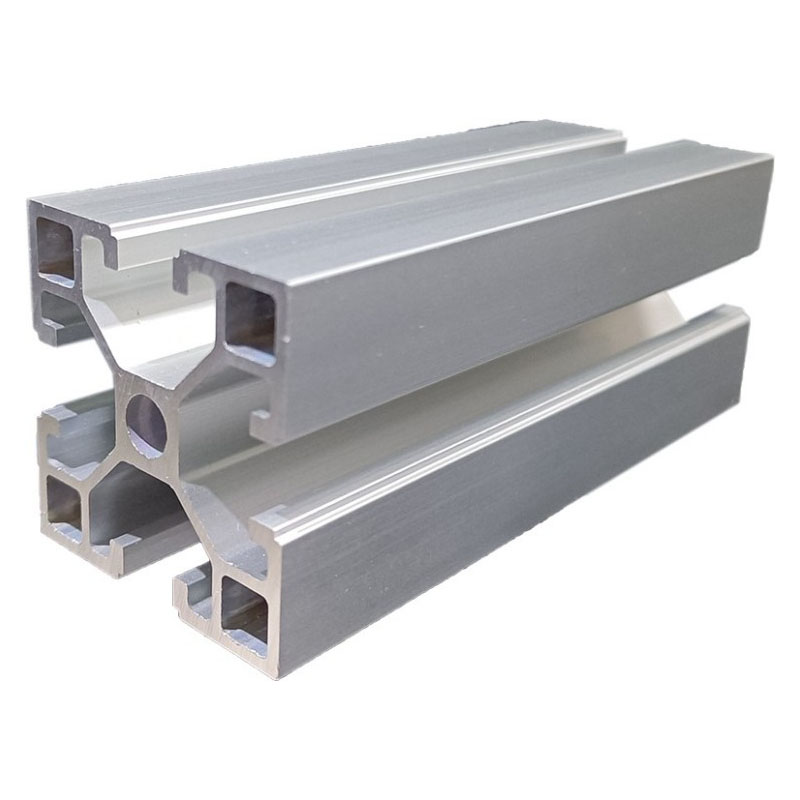

E&I-8-4040C			1.29kg/m	Ix:7.32cm4 Iy:7.32cm4	Wx:3.66cm3 Wy:3.66cm3

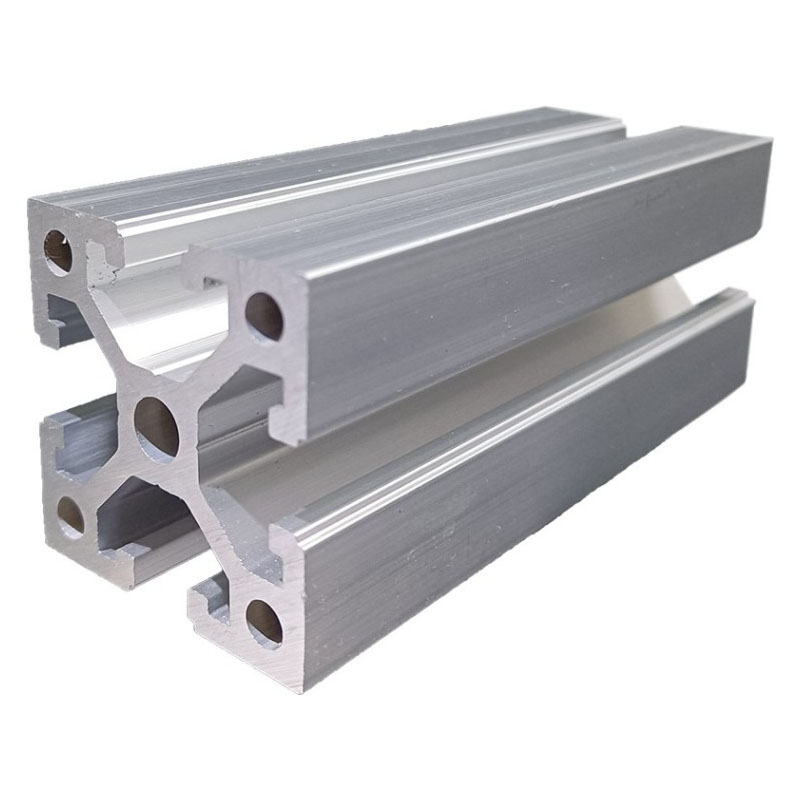

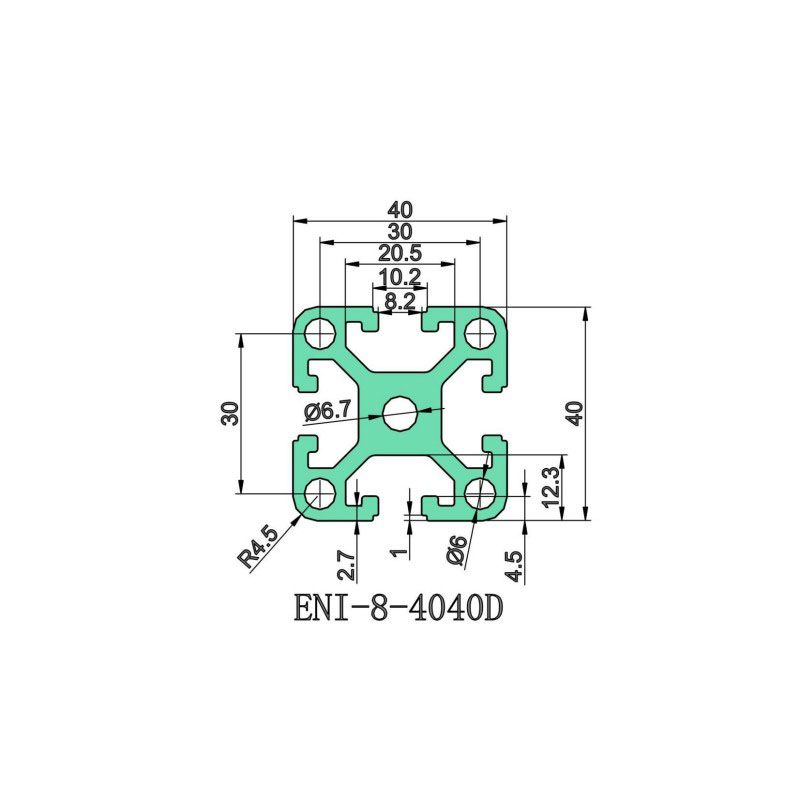

E&I-8-4040D			1.85kg/m	Ix:9.98cm4 Iy:9.98cm4	Wx:4.99cm3 Wy:4.99cm3

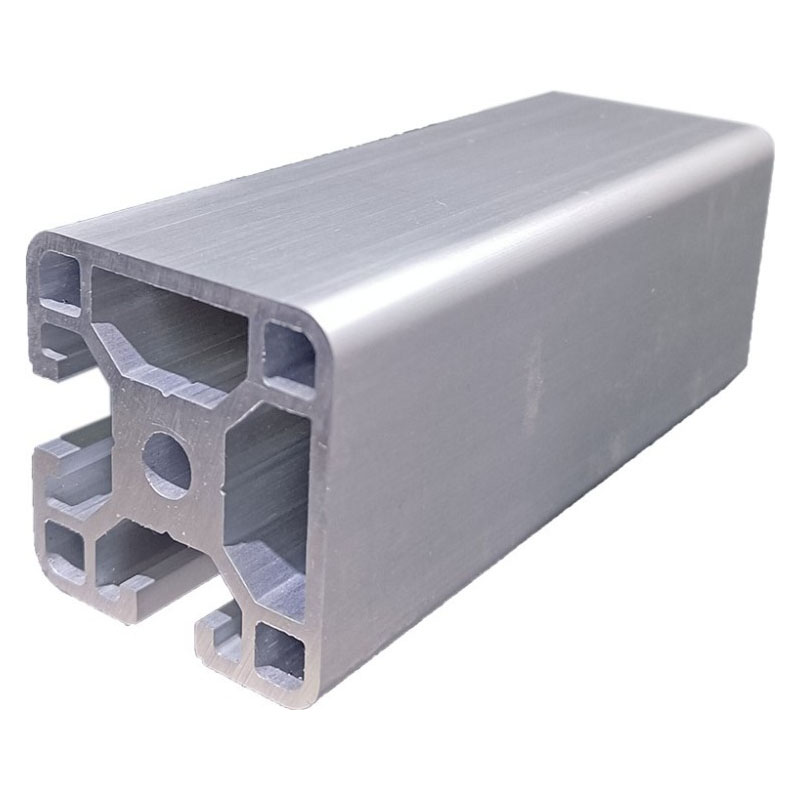

E&I-8-4040E			1.67kg/m	Ix:8.96cm4 Iy:8.96cm4	Wx:4.48cm3 Wy:4.48cm3

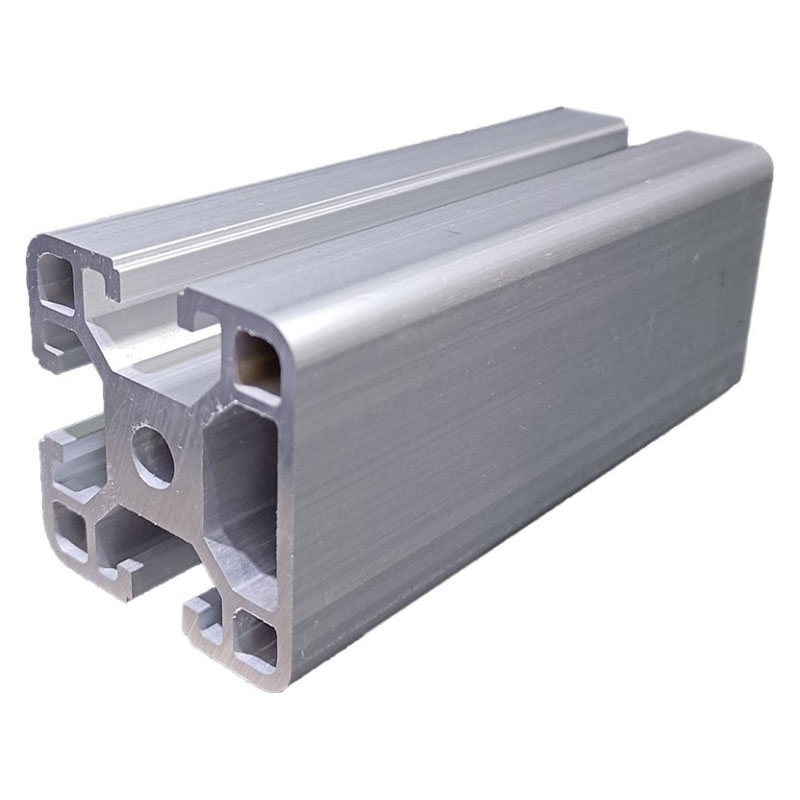

E&I-8-4040EE			1.65kg/m	Ix:8.63cm4 Iy:8.96cm4	Wx:4.32cm3 Wy:4.48cm3

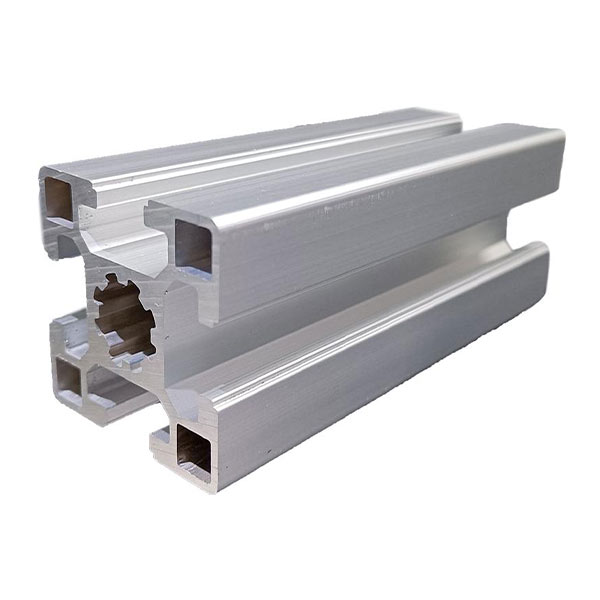

E&I-10-4040H			1.51kg/m	Ix:8.65cm4 Iy:8.65cm4	Wx:4.33cm3 Wy:4.33cm3

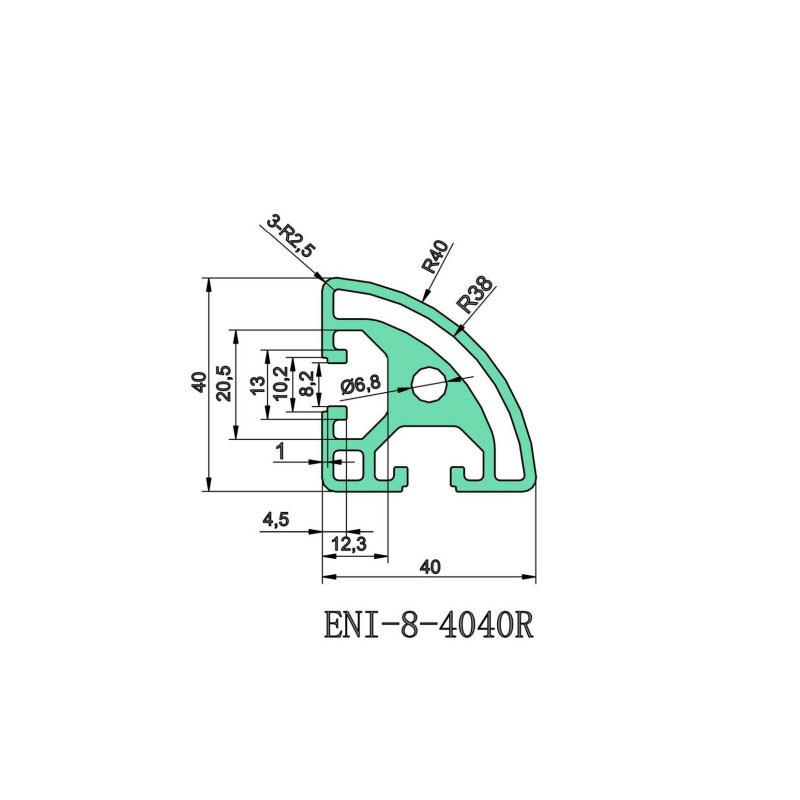

E&I-8-4040R			1.50kg/m	Ix:7.10cm4 Iy:7.10cm4	Wx:3.55cm3 Wy:3.55cm3

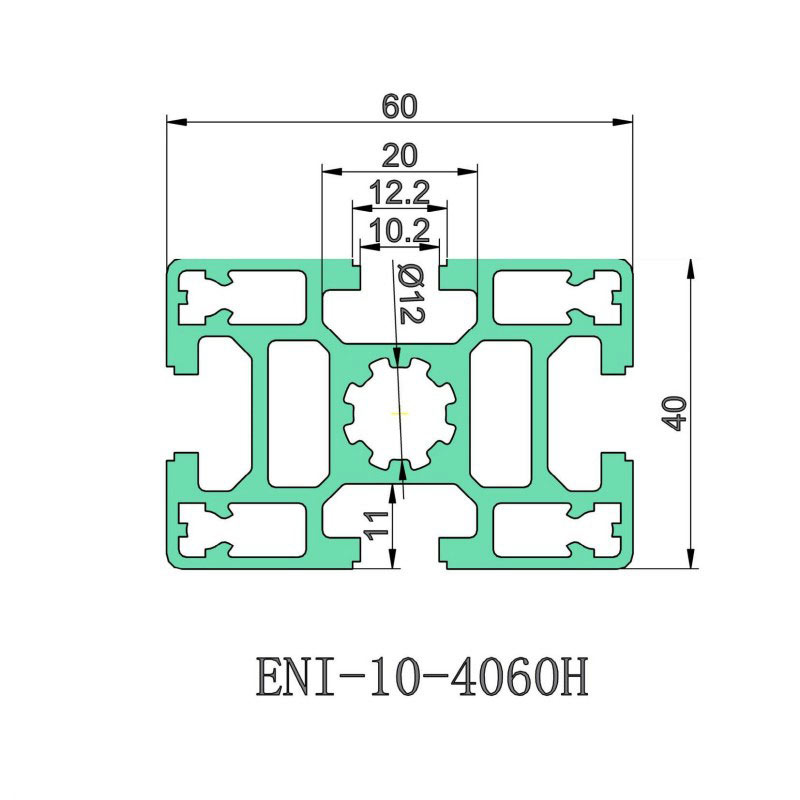

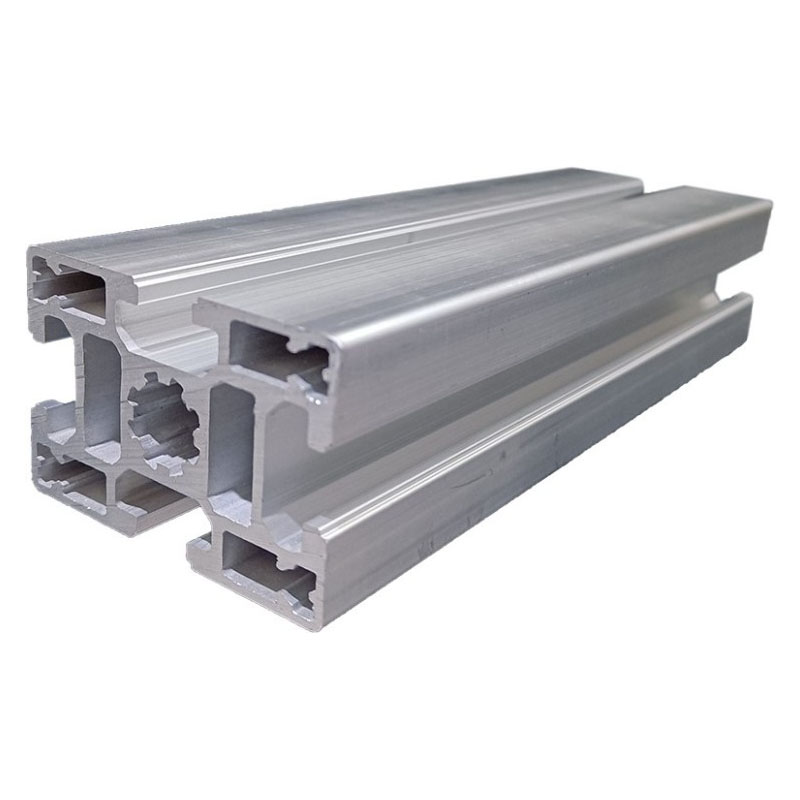

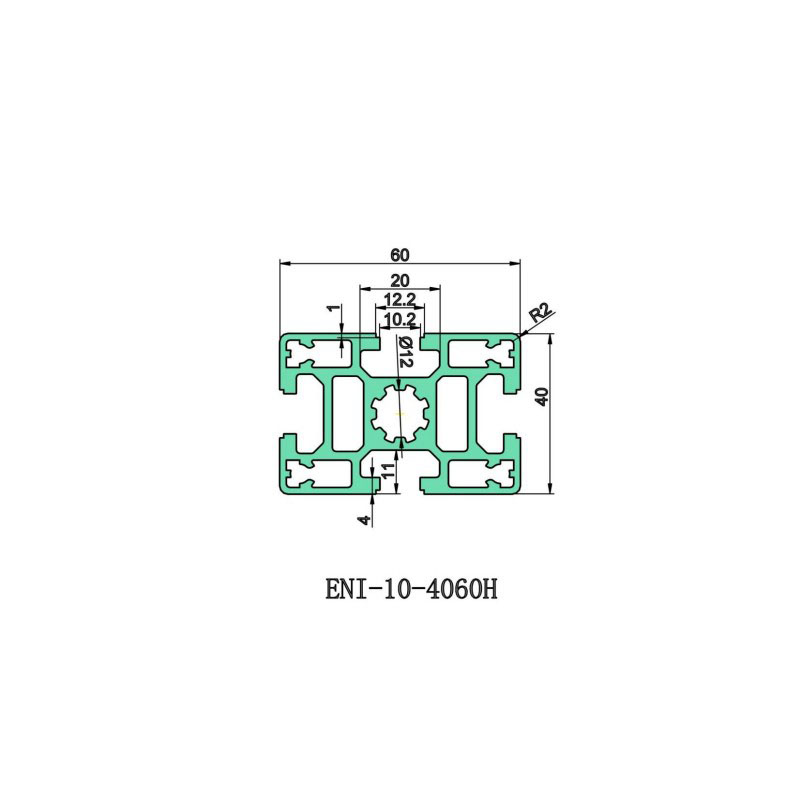

E&I-10-4060H			2.27kg/m	Ix:13.33cm4 Iy:27.69cm4	Wx:6.67cm3 Wy:9.23cm3

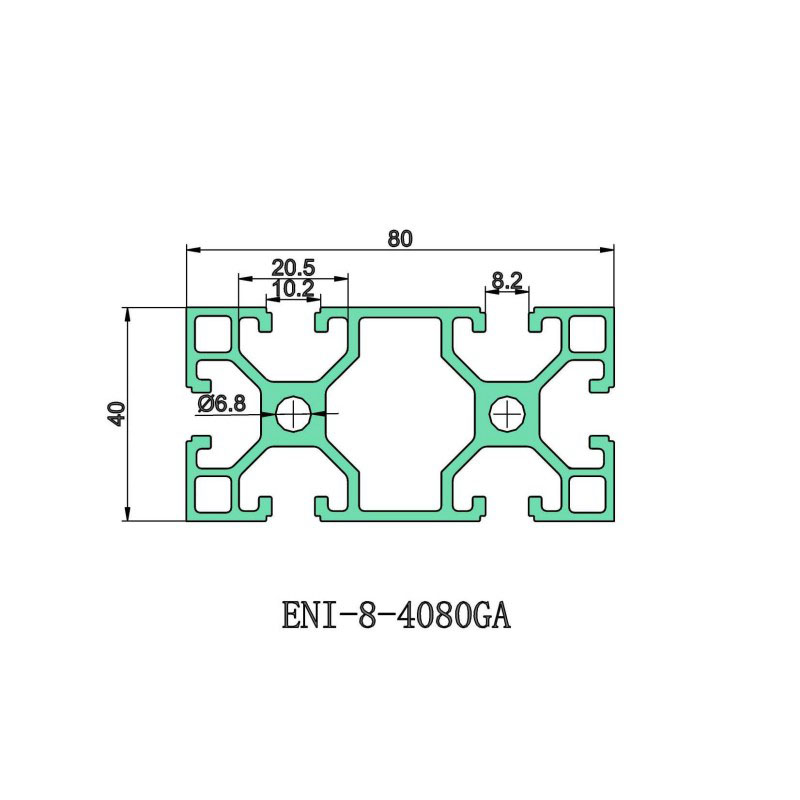

E&I-8-4080GA			2.31kg/m	Ix:14.41cm4 Iy:54.58cm4	Wx:7.21cm3 Wy:13.65cm3
E&I-8-4080C			2.22kg/m	Ix:13.72cm4 Iy:52.30cm4	Wx:6.86cm3 Wy:13.08cm3

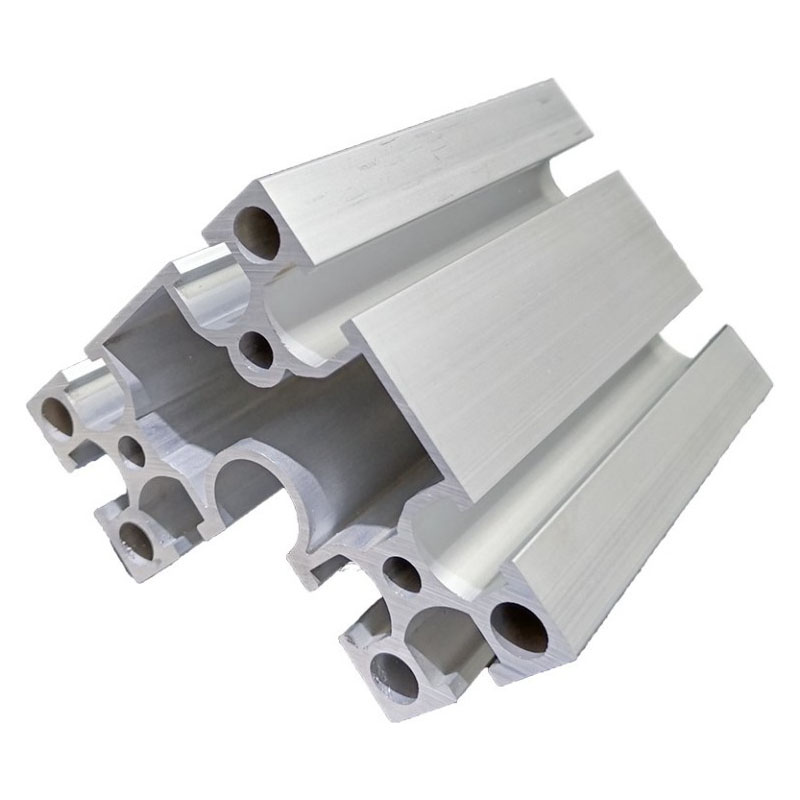

E&I-8-4080M			2.28kg/m	Ix:13.99cm4 Iy:52.91cm4	Wx:7.00cm3 Wy:13.23cm3

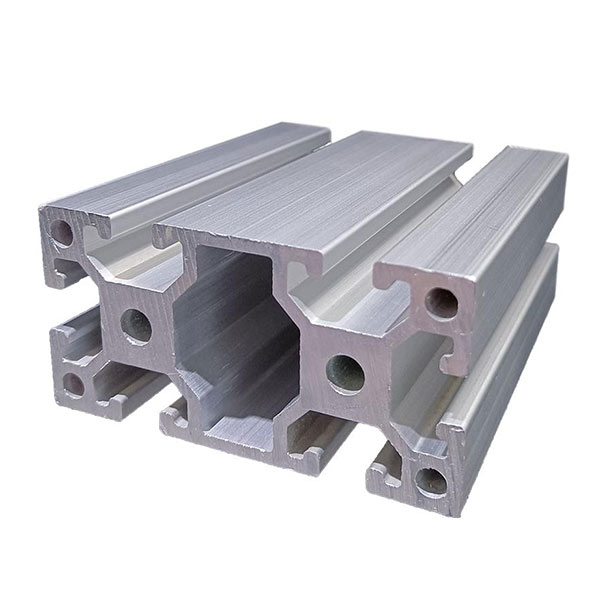

E&I-8-4080F			3.30kg/m	Ix:19.66cm4 Iy:79.30cm4	Wx:9.83cm3 Wy:19.83cm3

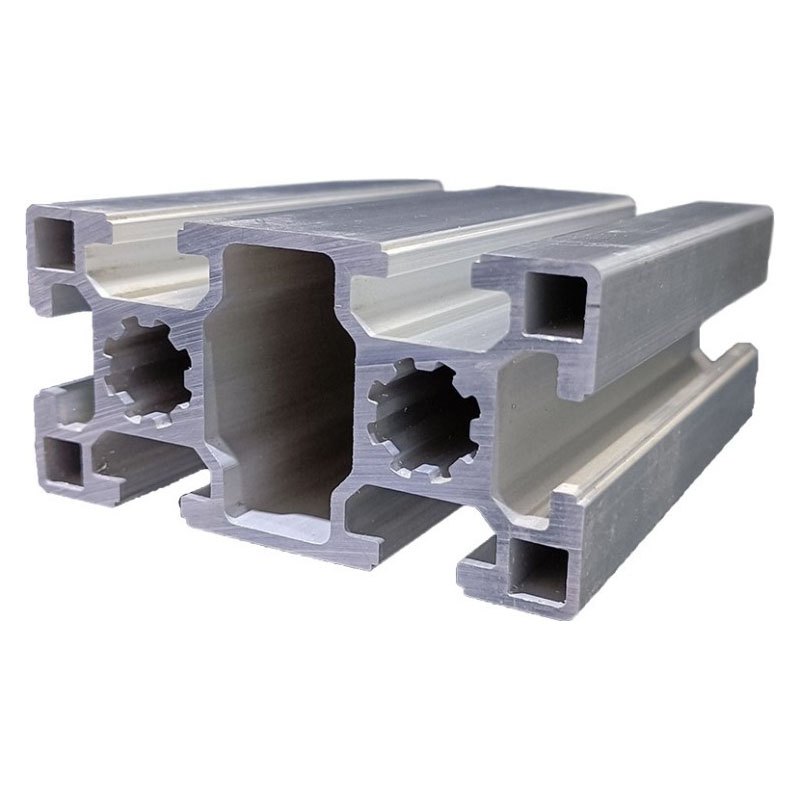

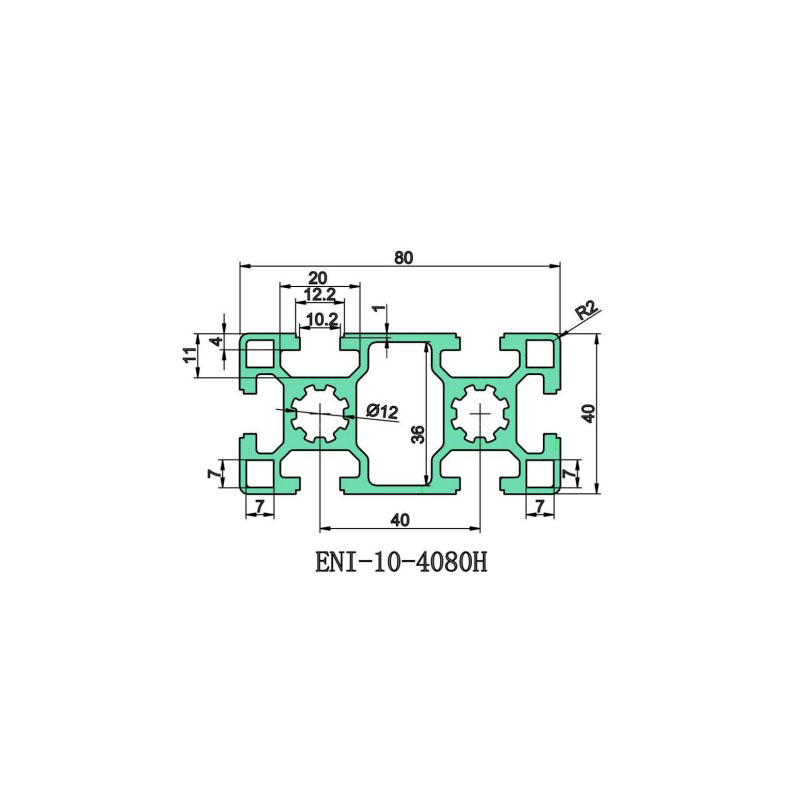

E&I-10-4080H			2.64kg/m	Ix:16.14cm4 Iy:61.71cm4	Wx:8.07cm3 Wy:15.43cm3

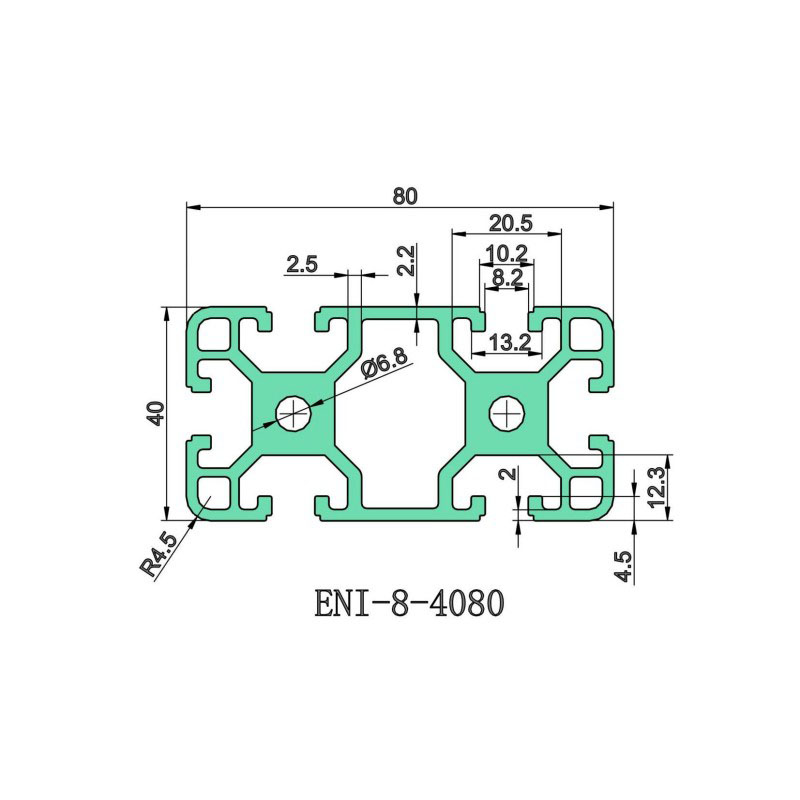

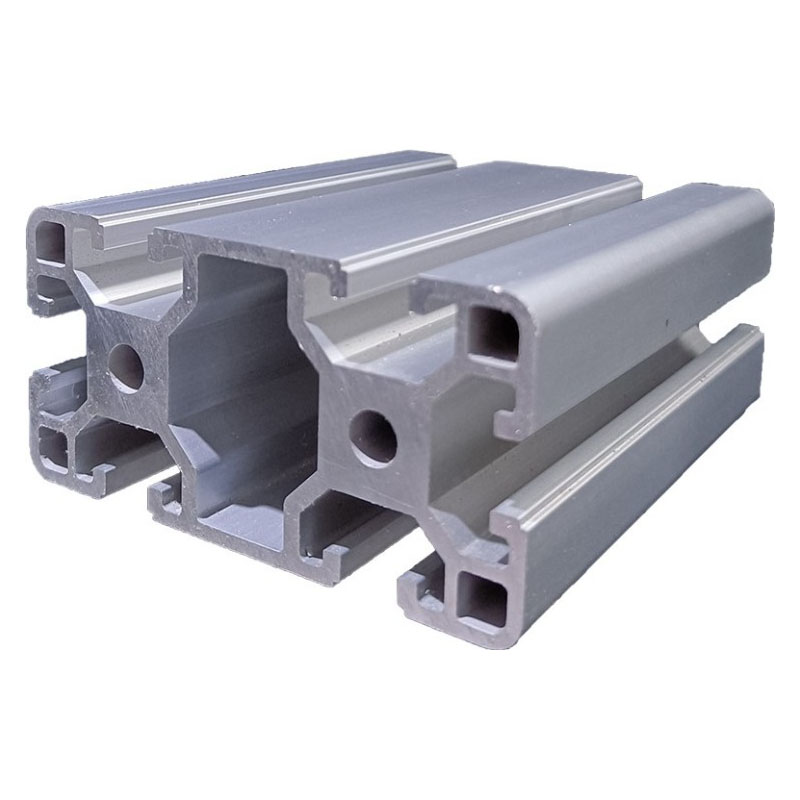

E&I-8-4080			2.94kg/m	Ix:16.48cm4 Iy:65.91cm4	Wx:8.24cm3 Wy:16.48cm3

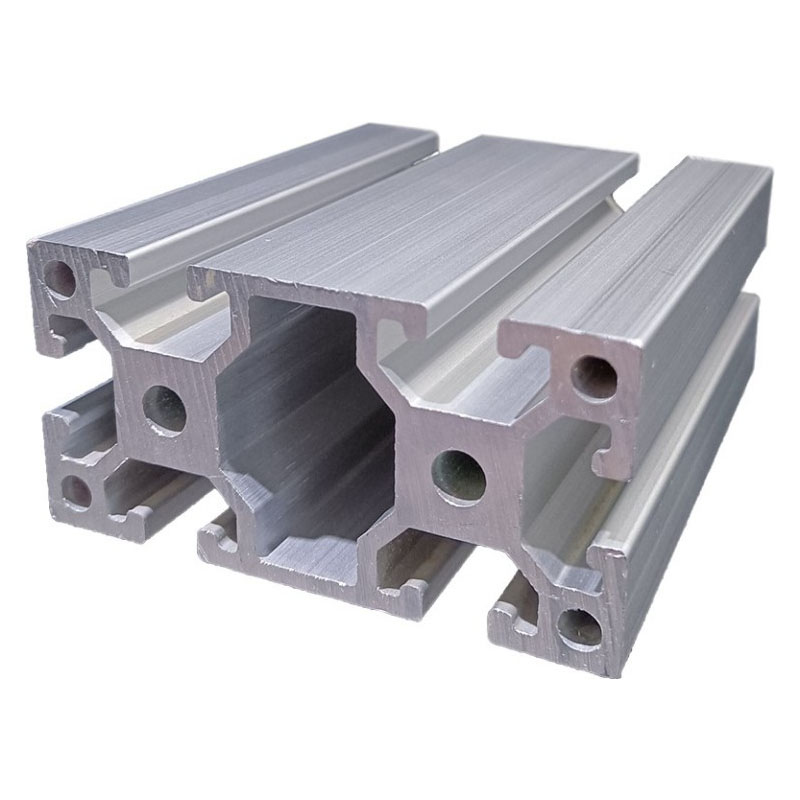

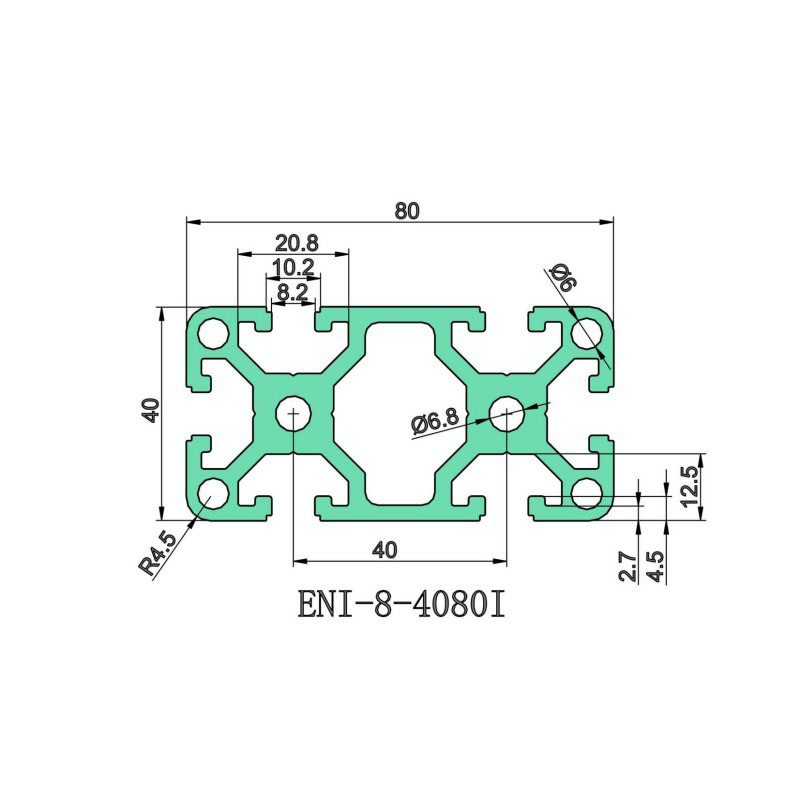

E&I-8-4080I			3.26kg/m	Ix:19.11cm4 Iy:73.31cm4	Wx:9.56cm3 Wy:18.33cm3

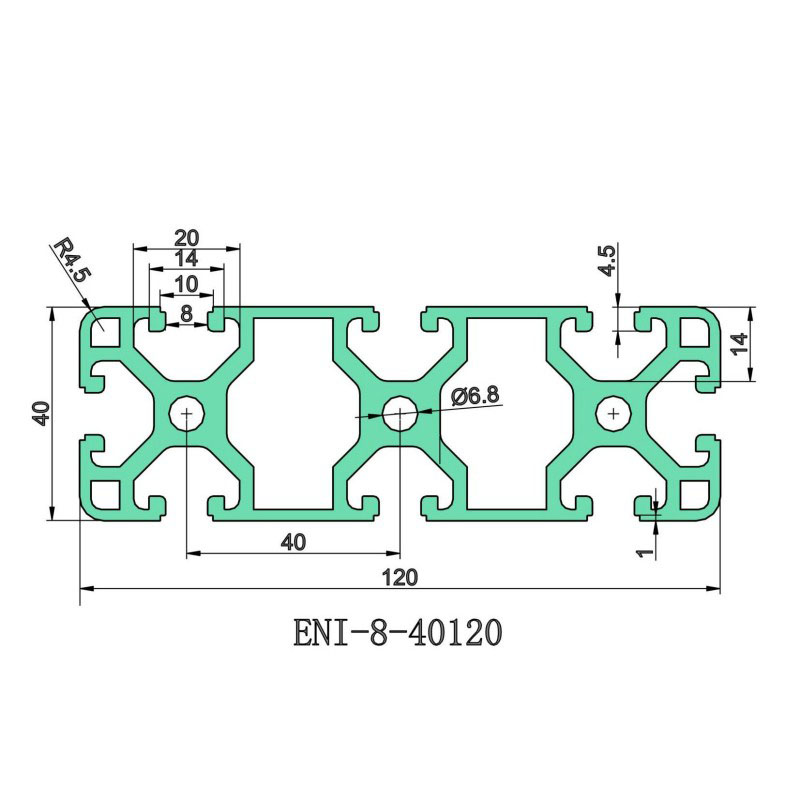

E&I-8-40120			4.28kg/m	Ix:25.52cm4 Iy:219.79cm4	Wx:12.76cm3 Wy:36.63cm3

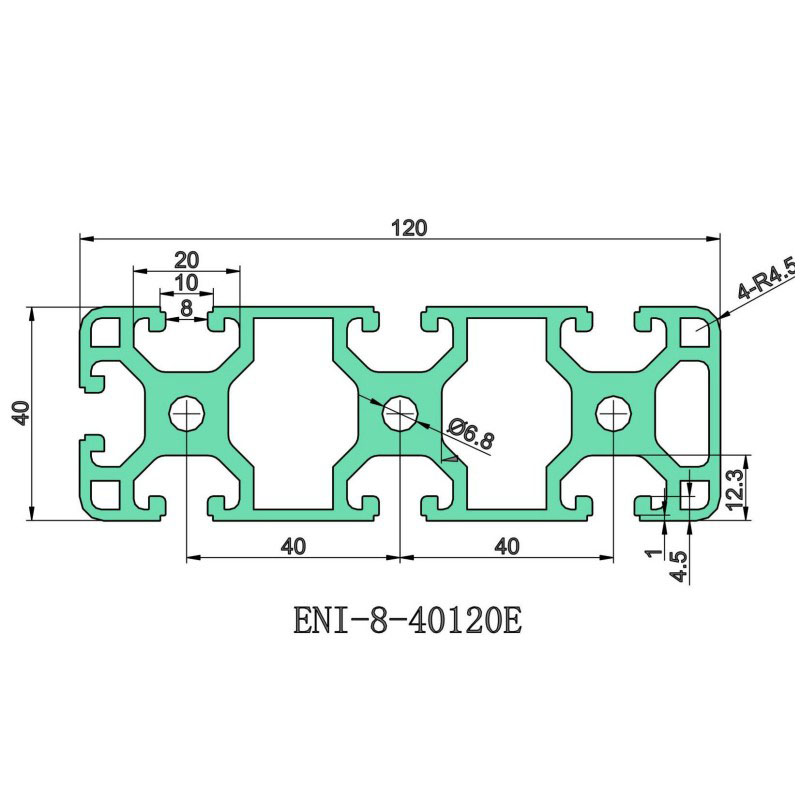

E&I-8-40120E			4.65kg/m	Ix:25.96cm4 Iy:238.31cm4	Wx:12.98cm3 Wy:39.71cm3

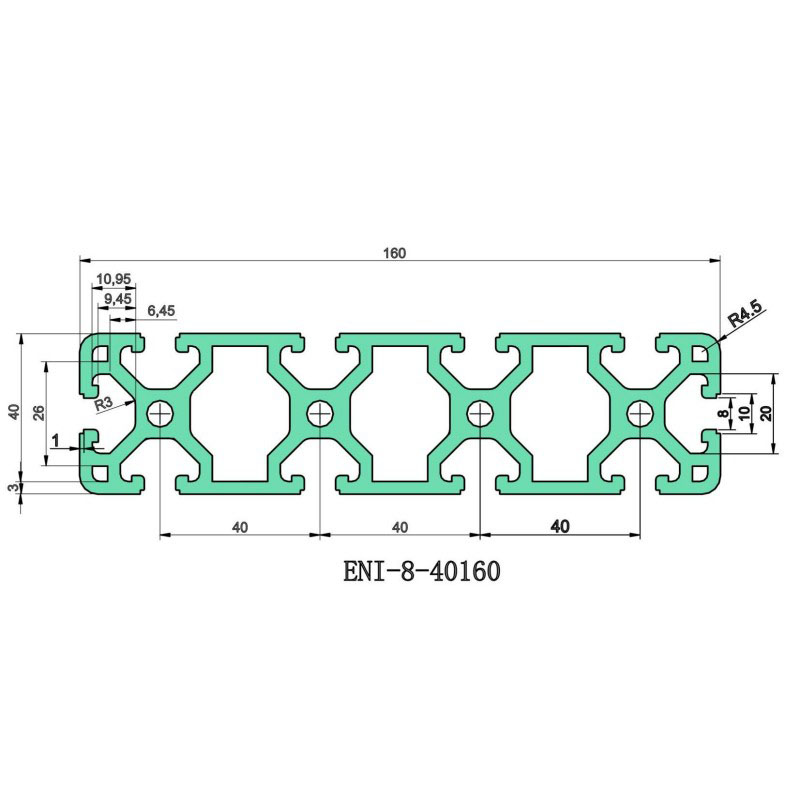

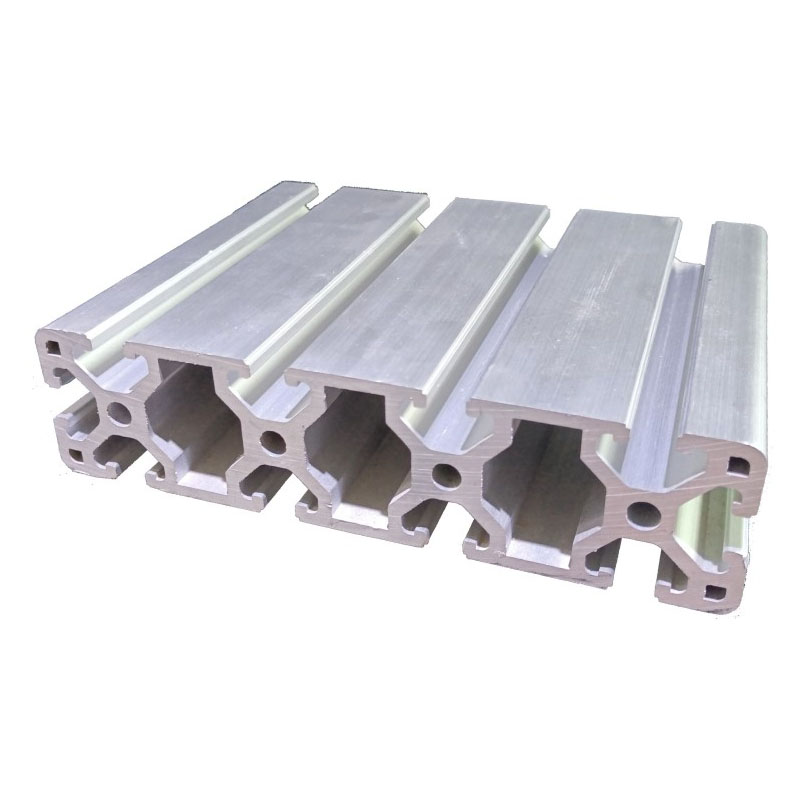

E&I-8-40160			6.23kg/m	Ix:39.83cm4 Iy:559.92cm4	Wx:19.92cm3 Wy:69.99cm3

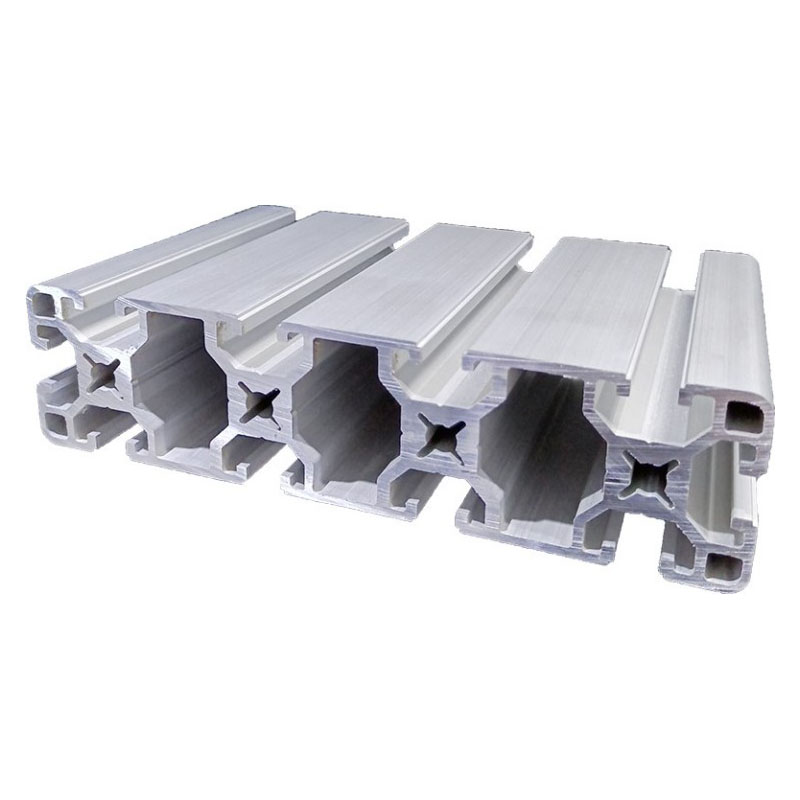

E&I-8-40160B			5.24kg/m	Ix:31.92cm4 Iy:457.75cm4	Wx:15.96cm3 Wy:57.22cm3
