Industrial aluminum profile E & I-6-1530 slot width 6mm door frame is light and can be processed

6-1530 profiles are usually used for the profile frame cabinet door, embedded with 2-6mm plate, and are equipped with special accessories. This kind of profile design is flexible, easy to use, and can meet the needs of various cabinet structures. Its characteristics of special accessories make installation and adjustment more convenient, and also reduces the weight of the overall structure and improves the convenience of use.


Product Detail

Product Features

The 6-1530 profile is a very practical industrial aluminum profile, which is widely used in the field of profile frame cabinet door and assembly line. Its design characteristics include a 2-6mm plate, which can be perforated, cutable, and equipped with special accessories, making installation and adjustment more convenient. The design of this kind of profile is very flexible, easy to use, and can meet the needs of various cabinet doors and kanban structures.

In the application of the profile frame cabinet door and the flow line, 6-1530 profiles show excellent performance. The design of the embedded board makes the overall structure stronger, and at the same time can maintain a lightweight, concise and beautiful appearance. The characteristics of perforation and cutting can facilitate customized processing. It can be personalized according to specific needs to meet the requirements of different projects.

The completeness of dedicated accessories also provides users with more choices and flexibility, so that 6-1530 profiles can be suitable for various application scenarios. Its lightweight, concise, and beautiful characteristics make it an ideal choice for the assembly line of the assembly line and profile frame cabinet. It can show excellent performance and practicality in the industrial production site and the business environment.

In short, with its multi-functional, flexible, simple, and beautiful characteristics, the 6-1530 profile provides ideal solutions for applications such as profile frame cabinets and assembly lines. Its design and performance make it a well -known product in the field of industrial aluminum profiles, providing users with more design choices and flexibility.

Detail

Model Physical Drawing Data Map Unit Mass Moment Of Inertia Sectional Resistance Moment

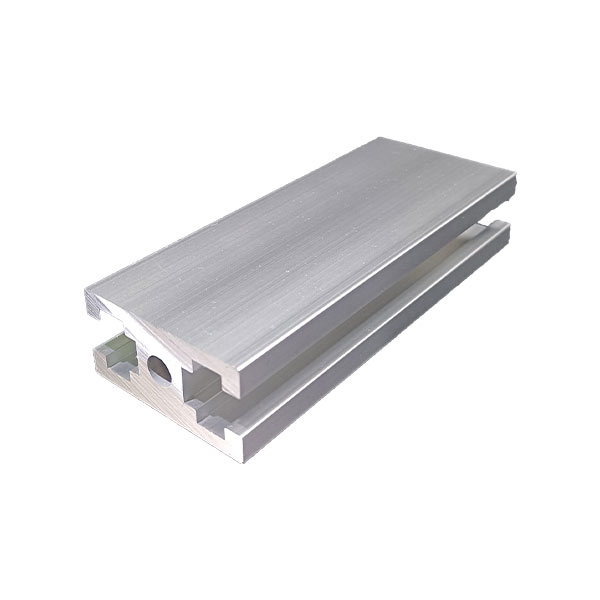

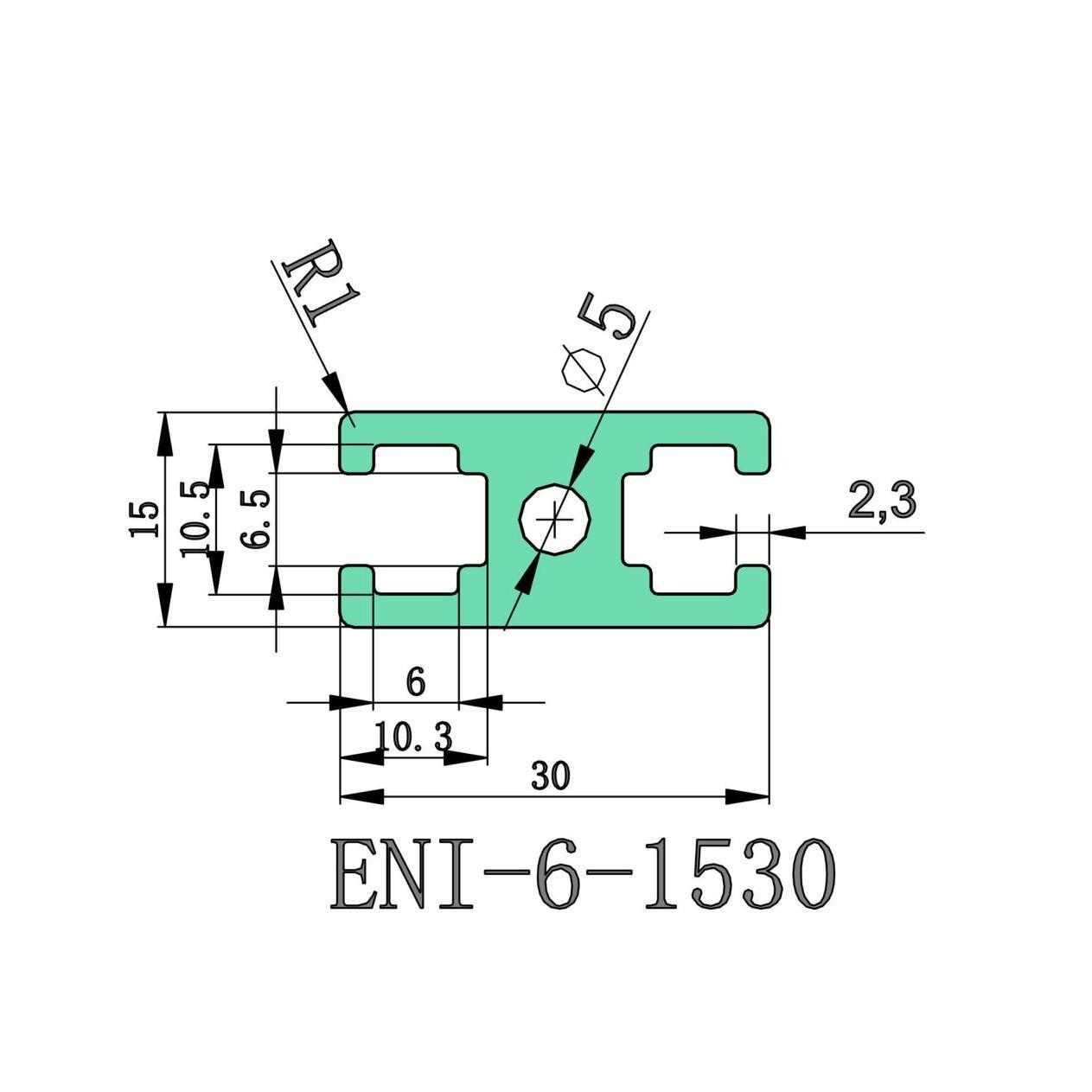

E&I-6-1530  nhvciyu  ENI-6-1530_00 0.67kg/m Ix:0.7cm4 Iy:1.47cm4 Wx:0.93cm3 Wy:0.98cm3

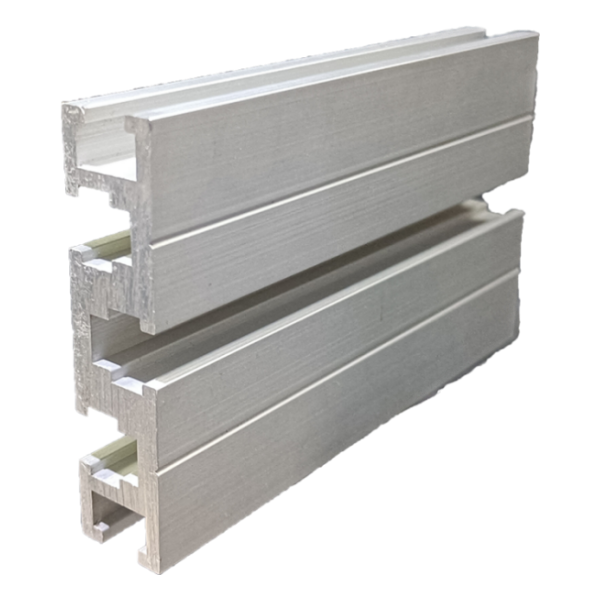

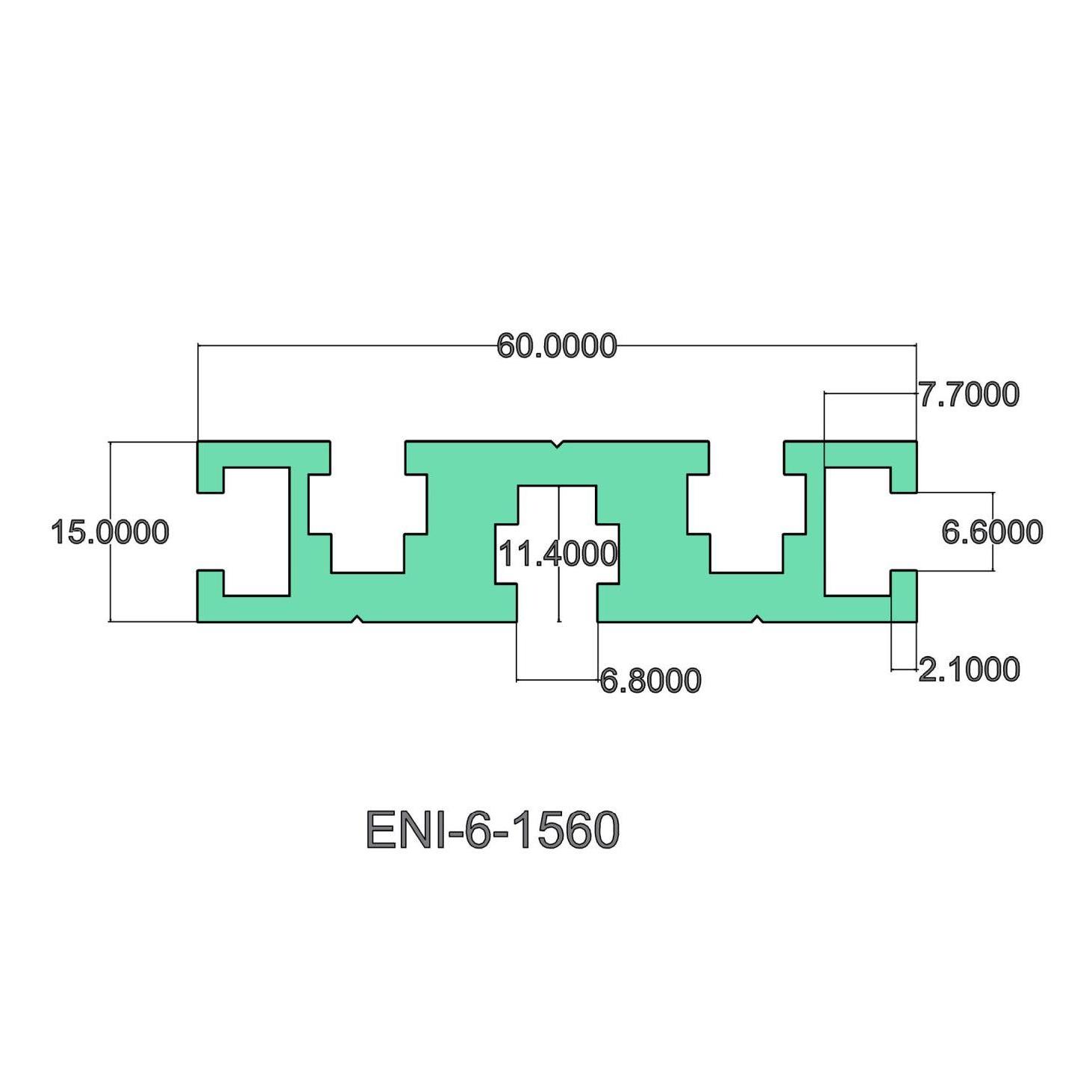

E&I-6-1560 nhvciyu  ENI-6-1560_00 1.29kg/m Ix:1.21cm4 Iy:12.44cm4 Wx:1.61cm3 Wy:4.15cm3

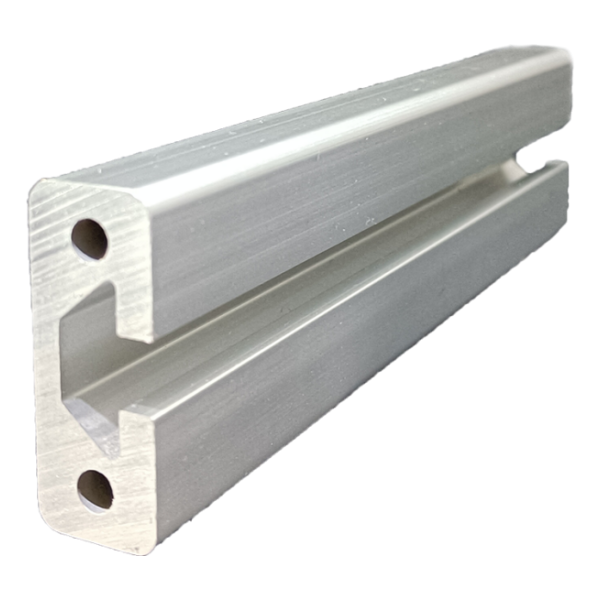

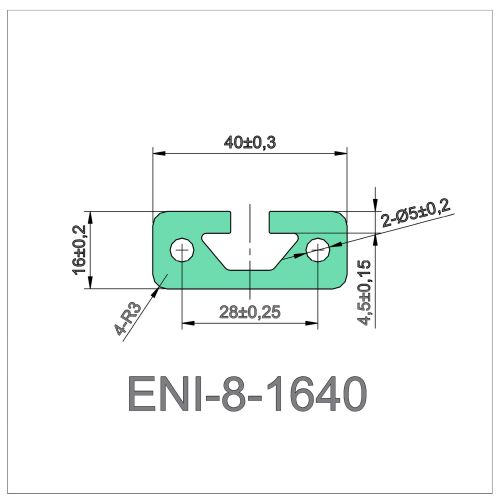

E&I-8-1640 nhvciyu  ENI-8-1640_00 1.18kg/m Ix:1.14cm4 Iy:7.17cm4 Wx:1.43cm3 Wy:3.59cm3

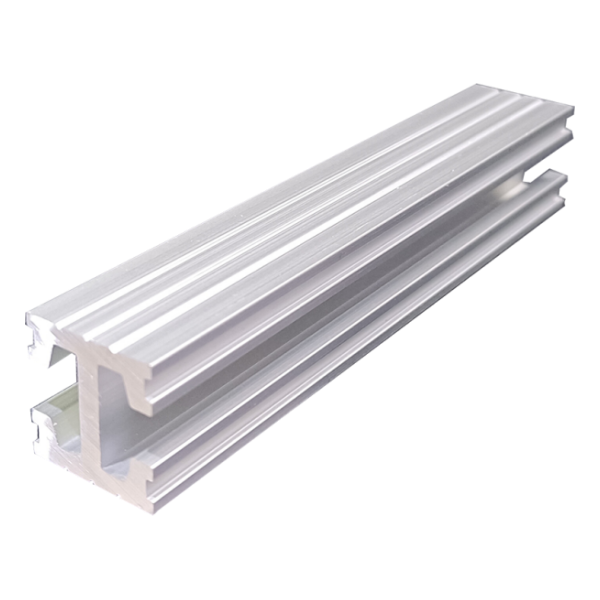

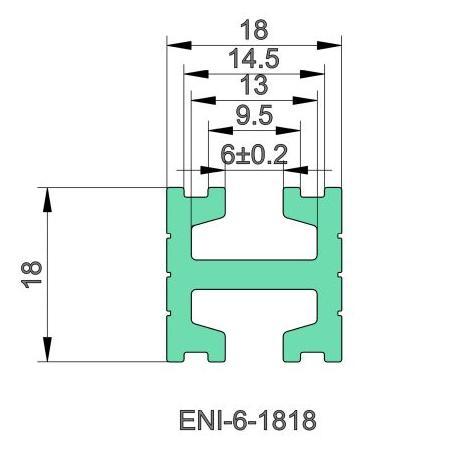

E&I-6-1818 nhvciyu  ENI-6-1818_00 0.45kg/m Ix:0.43cm4 Iy:0.67cm4 Wx:0.47cm3 Wy:0.74cm3
