E&I-10-9090W T-slot heavy duty aluminum profile, slot width 10mm, specification 90mm*90mm, anodized, suitable for heavy equipment and large platforms

E&I-10-9090W aluminum profile has a groove width of 10mm and a specification of 90mm*90mm. It has been anodized and has a very high load-bearing capacity. It is suitable for heavy equipment, industrial frames and large platforms, providing strong support and structural stability.


Product Detail

Product Features

E&I-10-9090W aluminum profile is a heavy-duty T-slot aluminum profile with a slot width of 10mm and a specification of 90mm*90mm. It is made of high-strength aluminum alloy and is anodized with a smooth and corrosion-resistant surface. It is designed for carrying high loads and heavy equipment.

This aluminum profile has excellent load-bearing capacity and is very suitable for applications that require high-strength support, such as large platforms, heavy equipment supports and industrial frames. Its unique design enables it to withstand continuous high loads and adapt to long-term stable use.

The E&I-10-9090W aluminum profile adopts a modular design, supports flexible assembly and adjustment, and can quickly adapt to different application requirements. Its structural stability ensures good support performance under high-intensity loads.

In addition, E&I-10-9090W aluminum profiles are recyclable and meet modern environmental protection requirements, making them an ideal choice for sustainable development projects. Whether in heavy machinery, automated production lines or large platform frame construction, E&I-10-9090W can provide long-term and stable support.

Detail

Model Physical Drawing Data Map Unit Mass Moment Of Inertia Sectional Resistance Moment

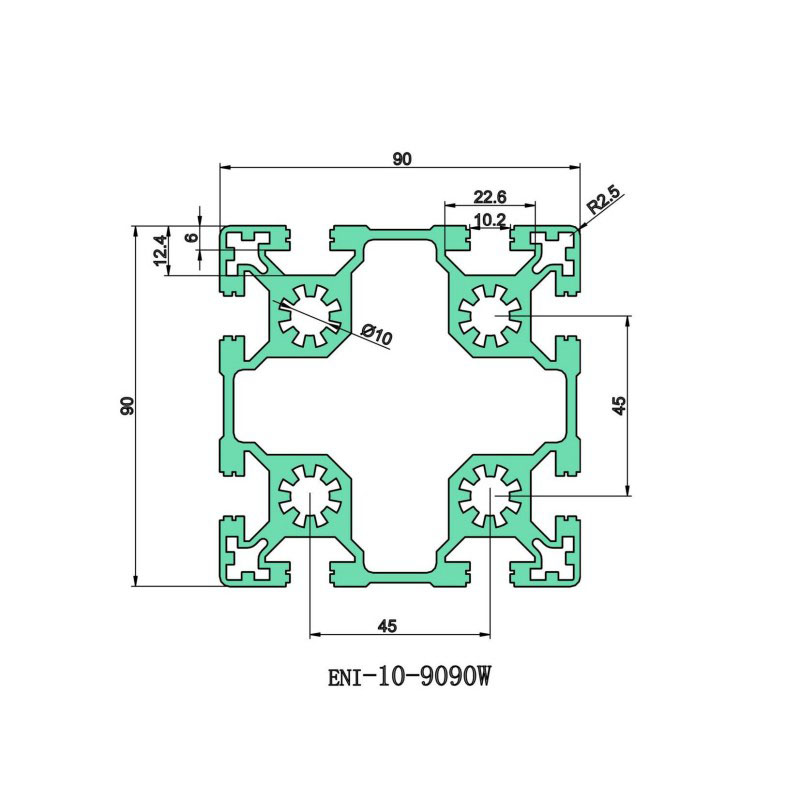

E&I-10-9090W  ENI-10-9090W_00 6.19kg/m Ix:201.66cm4 Iy:201.66cm4 Wx:44.81cm3 Wy:44.81cm3

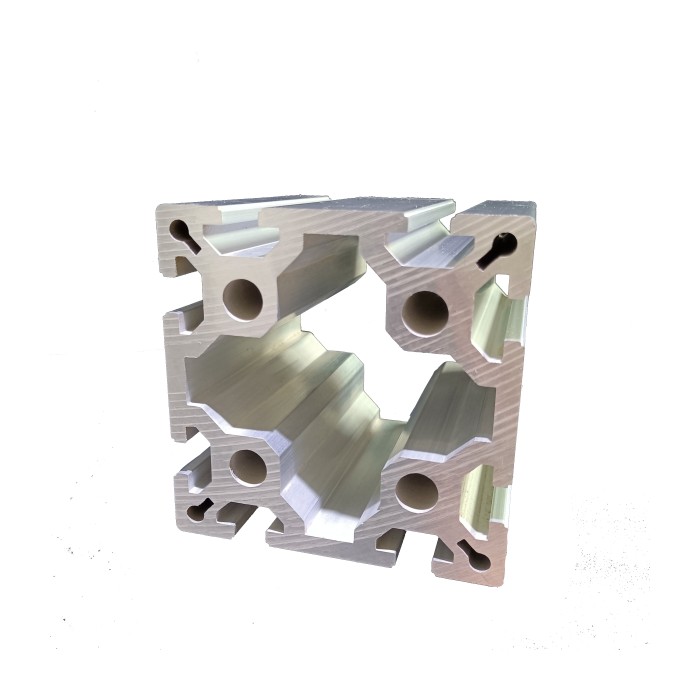

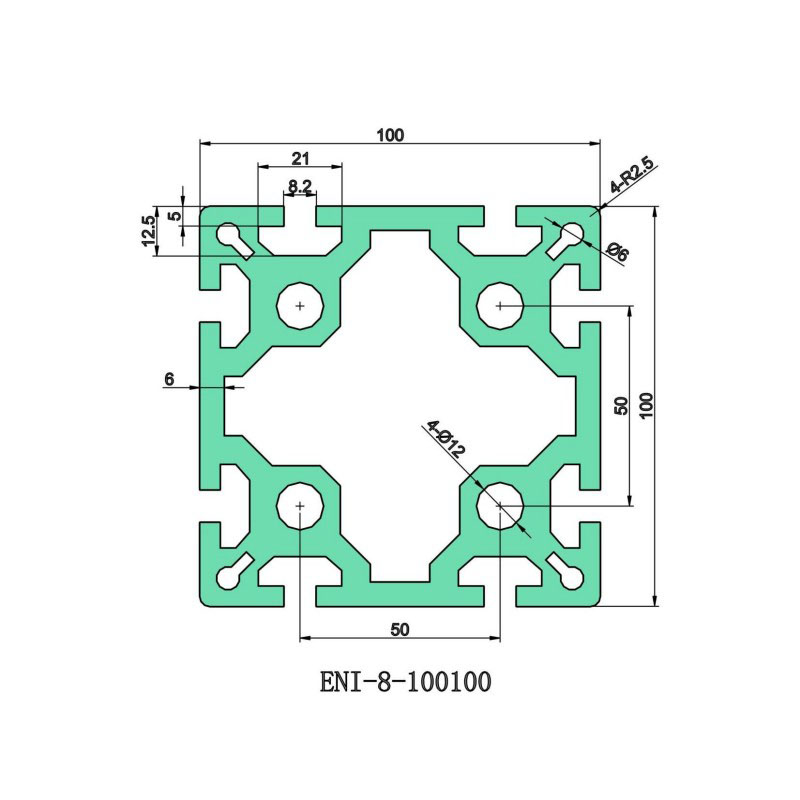

E&I-8-100100  ENI-8-100100  ENI-8-100100_00 10.68kg/m Ix:446.48cm4 Iy:446.48cm4 Wx:89.29cm3 Wy:89.29cm3
